Description
The AMT 12 Volt DC High Head Washdown Pump is engineered for demanding OEM, septic service, pumper, and marine applications where reliable 12V DC performance is required. Built for high-pressure washdown in damp and harsh environments, this premium-duty pump delivers durability, efficiency, and easy serviceability.
Designed with a pull-from-rear configuration, maintenance can be performed without disconnecting piping — minimizing downtime and maximizing productivity in the field.
⚠️ Note: Pump is not self-priming and requires flooded suction. Unit is not submersible.
Key Features
-
Maximum Flow: 56 GPM
-
Maximum Head: 80 ft. (35 PSI)
-
Motor: 7/8 HP Premium 12 Volt DC Washdown Duty Motor
-
Duty Rating: 1-Hour Duty Cycle
-
High-Efficiency Closed Impeller for optimal performance
-
Discharge Port Rotates in 90° Increments for flexible installation
-
Pull-from-Rear Design for easy servicing without disturbing piping
-
(4) Front Drain Plugs for maintenance convenience
Construction Options
Stainless Steel Model
-
300 Series Investment Cast Stainless Steel
-
Stainless Steel Impeller
-
Viton Mechanical Seal and O-Ring
Cast Iron Model
-
Cast Iron Housing
-
Stainless Steel Impeller
-
Buna-N Mechanical Seal and O-Ring
Built for Harsh Environments
The premium 12V DC motor is specifically designed for high-pressure washdown and wet operating conditions:
-
Epoxy-coated motor housing
-
Interior moisture-resistant coating
-
Condensate drains
-
Special shaft seals to retard water intrusion
-
Stainless steel motor shaft
-
12V DC stud connections with O-ring seals
-
Oversized brushes for extended brush life
-
Base mount configuration
Ideal Applications
✔ Septic & vacuum trucks
✔ Pumper units
✔ Marine washdown systems
✔ OEM equipment builds
✔ Service trucks requiring 12V DC washdown capability

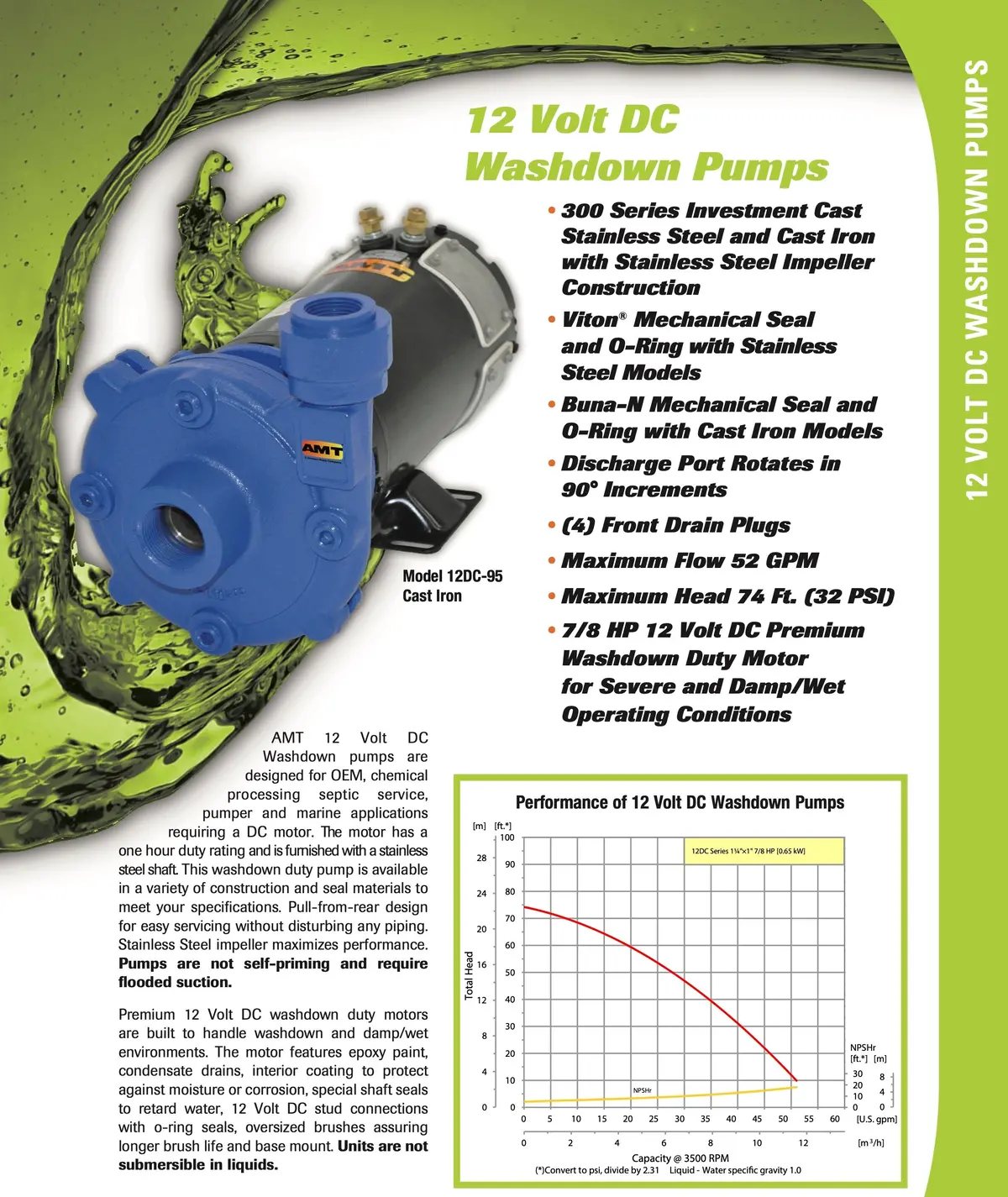

AMT 12DC-95, 12 Volt DC Washdown Pump, 7/8 HP, 1-1/4″ NPT Suction, 1″ NPT Discharge, 52 GPM, Cast Iron, Buna-N Shaft Seal
