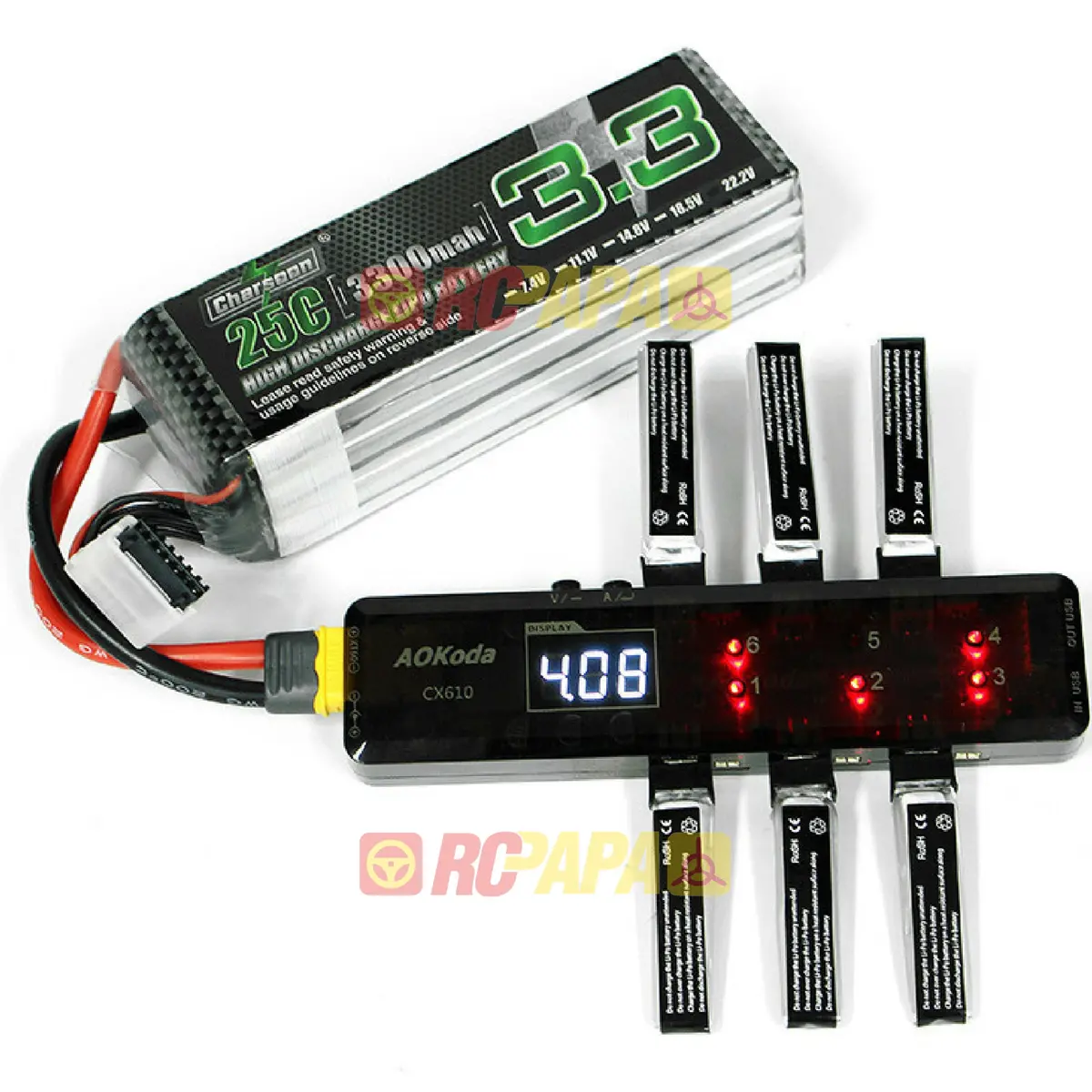

Aokoda CX610 Compact 1S LiPo Battery Charger – 3.7V Micro Charging Module

Description

Features
Simple operation, plug and play
DC 3.5mm/Batteries XT60/Micro usb three input modes
Charge current is adjustable from 0.1A to 1A
LED Digital tube display real-time indicates the battery charge voltage
Output current: 2.4A intelligent charging port,Fast charging port 2.4A/1.5A/1A
Six-channel independent output, which can charge Six batteries at the same time

Specifications:
DC 3.5mm input range: 9V-26V–24W
Batteries XT60 input range: 9V-26V 3-6S LiPo
Micro usb input range: 5V—1A/2A/2.4A
DC input over discharge voltage setting range: 9V-24V
Batteries XT60 over discharge voltage: Smart and manual adjustment
End of charge voltage: 4.20V±1%
Charge power: 2Wx6ch
Charge current: (0.1-1A)x6ch
Battery type: LiPo
Battery cell count: 1S
Indication: LED Digital tube display
Support batteries port: mCPX,MCX (MOLEX,JST- Transit line)
USB output: 5V–2.4A/2.0A/1.0A intelligent fast charging port(DC/XT60 input)
Dimension: 142x34x17.5mm
Weight: 60g
