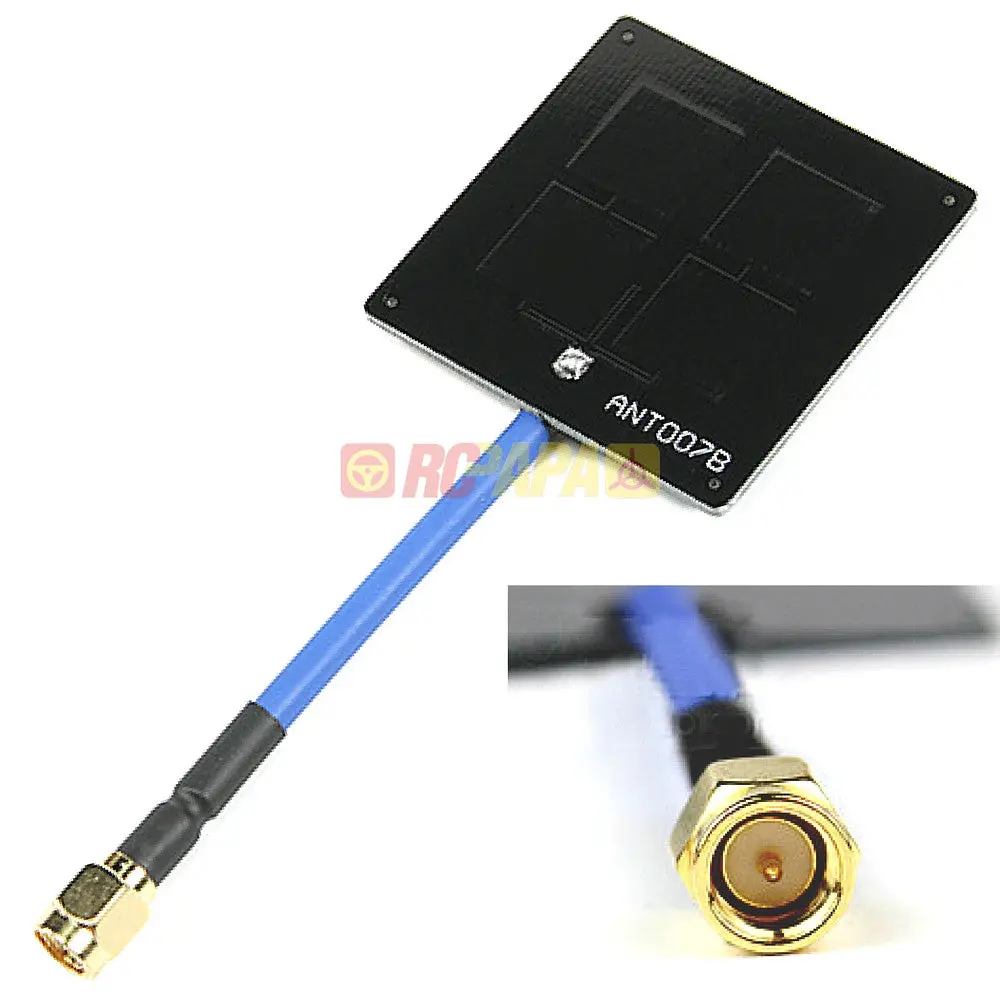

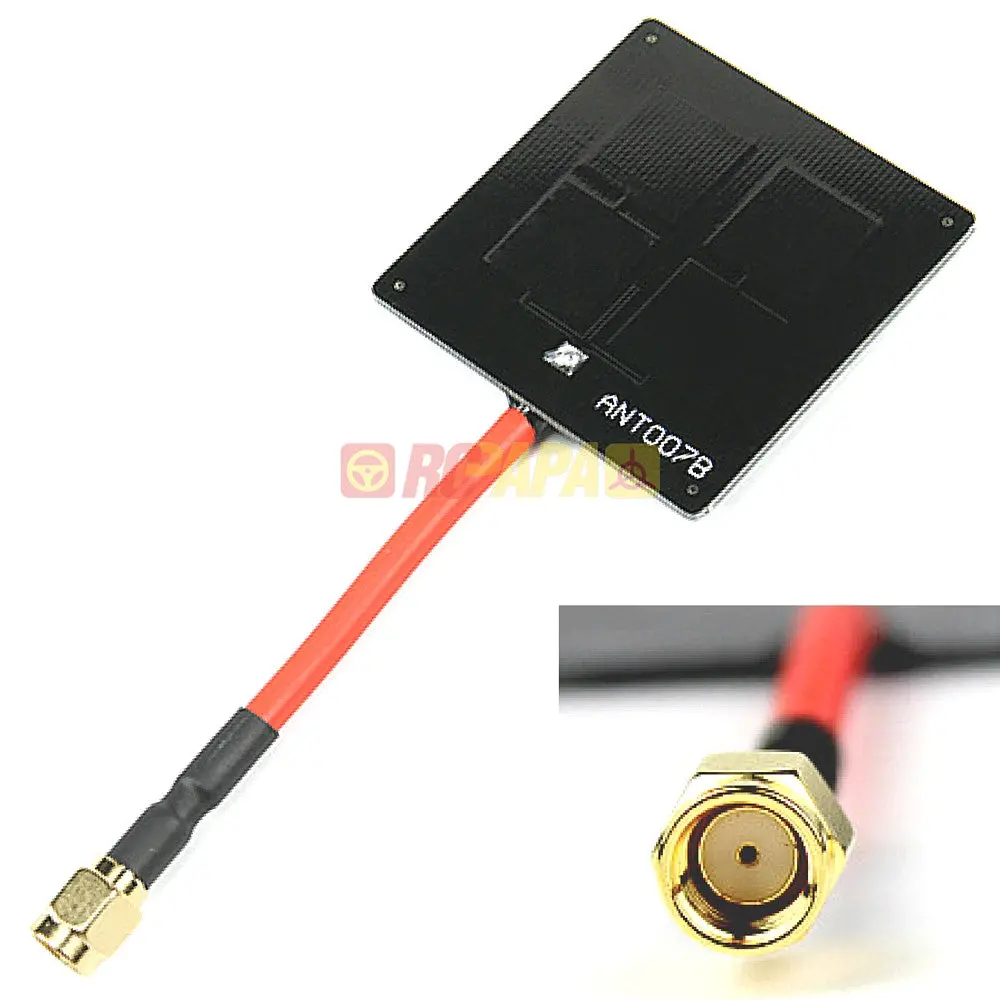

Aomway 5.8 GHz RHCP Flat Patch Directional Antenna – 6 dBi Gain

Description

Package included :

Aomway 5.8GHz 6dBi Flat Patch Directional Antenna

** two connector type, SMA / RPSMA (see options)

Summary

The new Aomway 5.8GHz Patches Antenna are extremely lightweight making them ideal to use on FPV goggles. Operates in the 5705~5945MHz frequency bandwidth and has a beam width 35 degrees (H + V). It has a compact design and a flexible stem to allow easy adjustments. This a very affordable antenna that will enhance your FPV experience.

Features :

35 degrees operating angle

Lightweight (13g)

Easy to install

Specs :

Frequency: 5705~5945MHz

Connector: SMA / RPSMA (see options)

Polarization: Right-hand circular (RHCP) 5.8Ghz ISM Band

Gain: 6dBi

Beam Width: 35 degrees (H + V)

F/B Ratio: 12dBi, VSWR is <1.5:1

Impedance: 50ohms

Dimensions: 45x45mm w/75mm stem

Weight: 13g
