Description

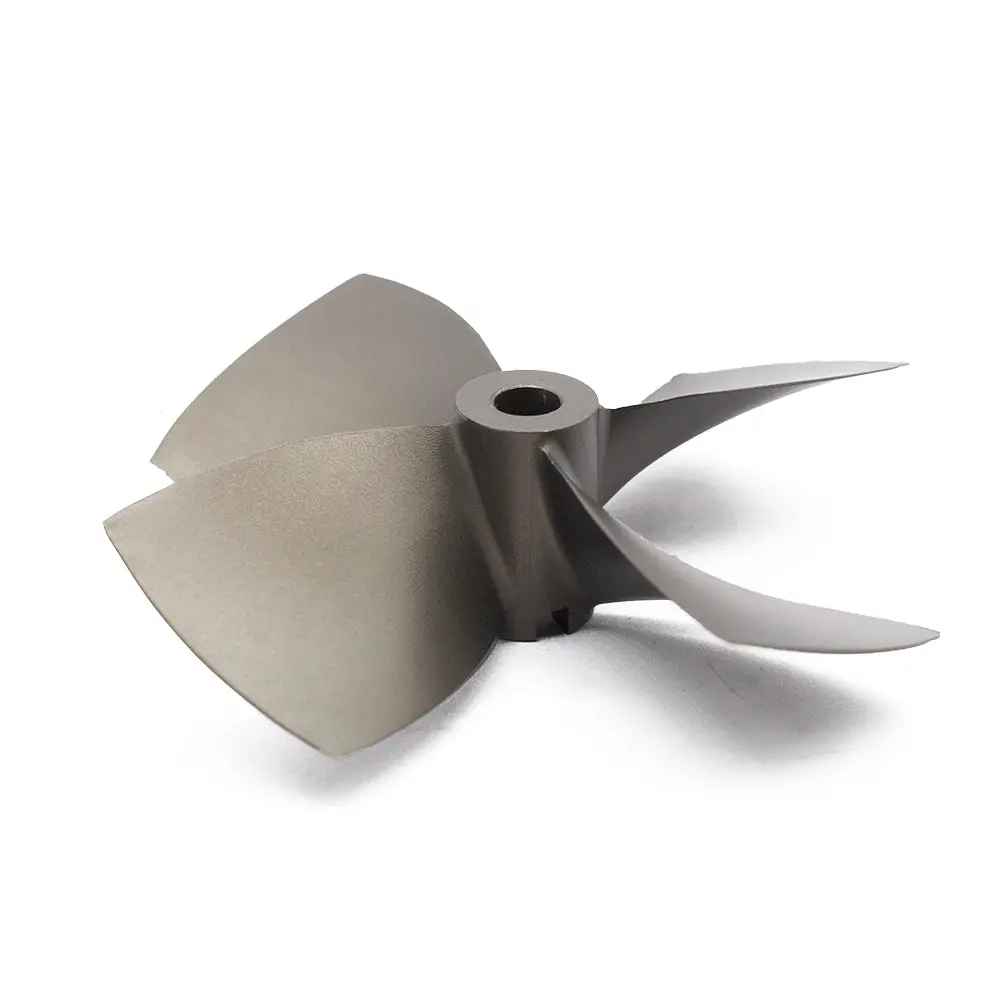

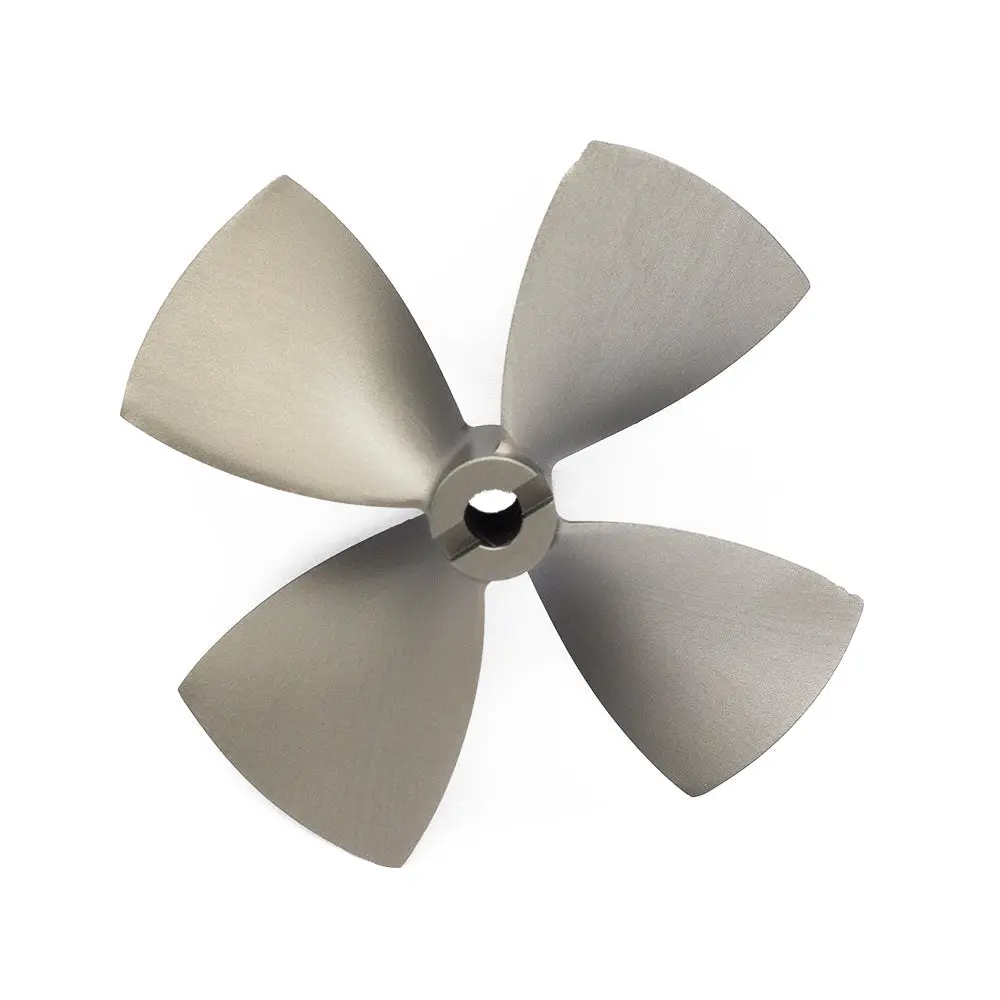

The propeller produces 10-25Kg of thrust.
The test data uses motor data:
Motor KV value: 100KV
Motor voltage: 48V
DESCRIPTION OF THE UNDERWATER THRUSTERS CW AND CCW
This motor is tested under different voltage with propeller current, thrust and other parameters:
| Forward | Reversal | ||||||||
| Voltage（V） | Throttle | Current（A） | RPM | Thrust（Kg) | Voltage（V） | Throttle | Current（A） | RPM | Thrust（Kg) |
| 48 | 20% | 1.1 | 822 | 1.50 | 48 | 20% | 0.4 | 857 | 1.20 |
| 48 | 30% | 1.7 | 1165 | 3.00 | 48 | 30% | 2.3 | 1508 | 3.70 |
| 48 | 40% | 3.0 | 1508 | 5.40 | 48 | 40% | 2.6 | 1542 | 3.90 |
| 48 | 50% | 5 | 1817 | 7.40 | 48 | 50% | 4 | 1885 | 5.40 |
| 48 | 60% | 7 | 2091 | 9.40 | 48 | 60% | 6 | 2125 | 7.50 |
| 48 | 70% | 12 | 2367 | 12.80 | 48 | 70% | 11 | 2400 | 9.40 |
| 48 | 80% | 16 | 2640 | 15.60 | 48 | 80% | 16 | 2742 | 12.20 |
| 48 | 90% | 20 | 2914 | 20.10 | 48 | 90% | 20 | 2948 | 14.00 |
| 48 | 100% | 30 | 2980 | 23.50 | 48 | 100% | 27 | 3120 | 17.80 |
