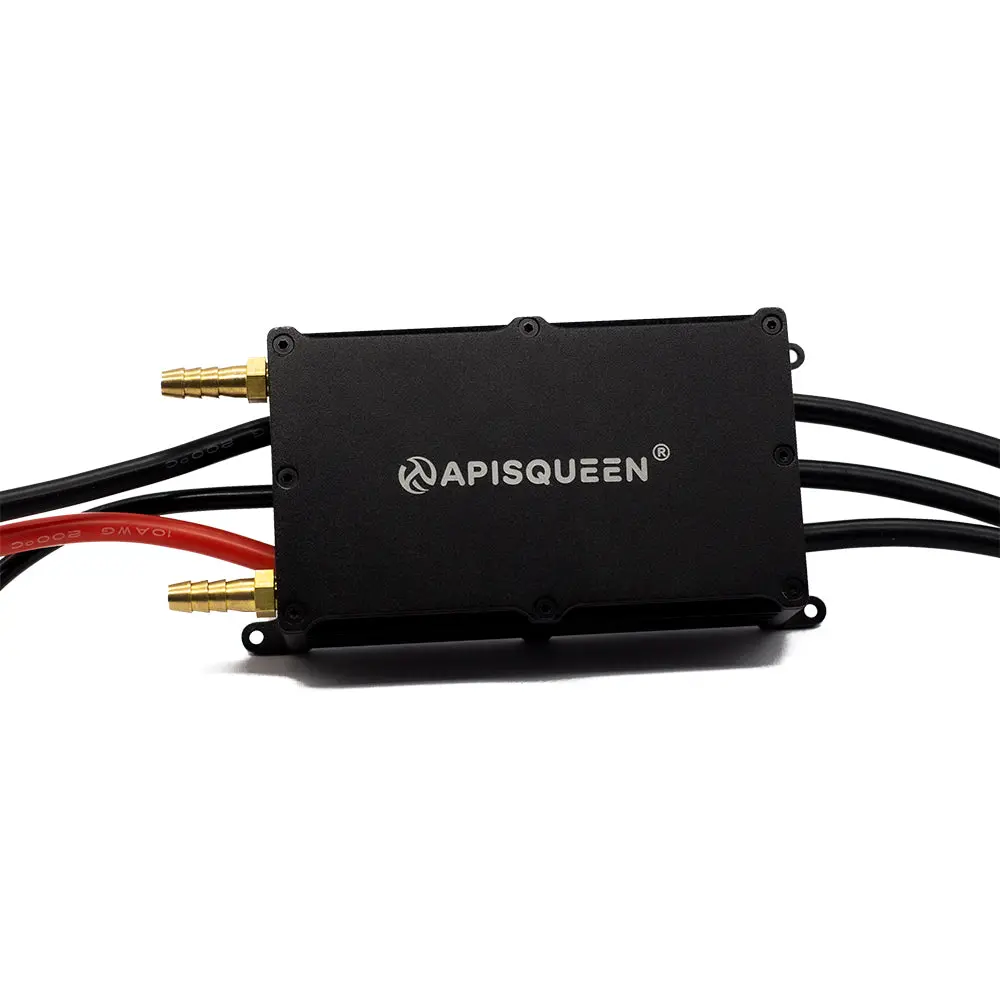

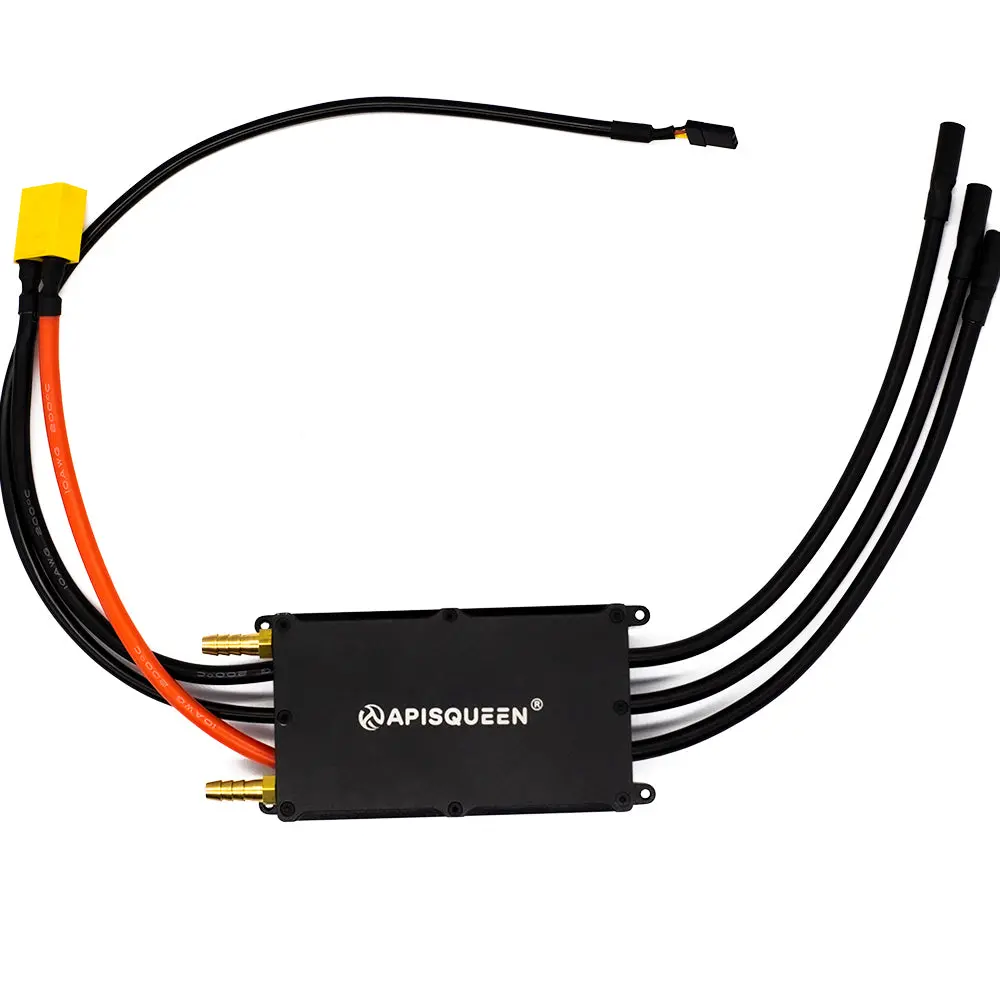

Apisqueen Feather 130A Water-Cooled Brushless ESC – High-Voltage Electronic Speed Controller for RC Boats, Hydrofoils, Submersible Propulsion Systems, and High-Performance Brushless Motors

Description

Reference Board Software Connection Method and Parameter Description：

Model:Feather 130A
Continuous current:130A
Peak current(10s):160A
Voltage :16-60V
Whether programmable upgrade :Yes
BEC Output:5V1A
PWM Output:8-32KHz
Weight:500g (with CNC case)
Dimension:97x57x24mm
Cooling:water cooling

Efficient parameter setting software
Simply connect the APISQUEEN USB tuning board to your computer and set the parameters you want according to your actual situation.

Software download link (click on the link to download): https://cdn.shopifycdn.net/s/files/1/0621/5493/2452/files/ApisQueen_tool.zip?v=1677690776

【If you can’t find the com port, you need to download and install Ch340 or Ch341 driver. Connect the computer and ESC signal cable with Usb, click Tools, select com port, click Connect, then power on the ESC, confirm the connection is successful, then Readpara to read the parameters, then modify the corresponding parameters, then click writepara to write and save.】
