Description
MU7/MU7 Pro Underwater Thruster with ESC User Guide：
Model: MU7/MU7 Pro
Voltage: 12-24V
Number of poles: 14 poles
Maximum power: MU7 Pro: 825W; MU7: 435W
25V continuous operation power: MU7 Pro 825W; MU7: 275W
Wire length: 1.5m(MU7/MU7 Pro)
MU7/MU7 Pro use environment: seawater/freshwater
MU7 Weight:597g
MU7 Wire Diameter:7mm
MU7 Pro Weight: 738g
Wire Diameter: 11mm
MU7/MU7 Pro 3D image download

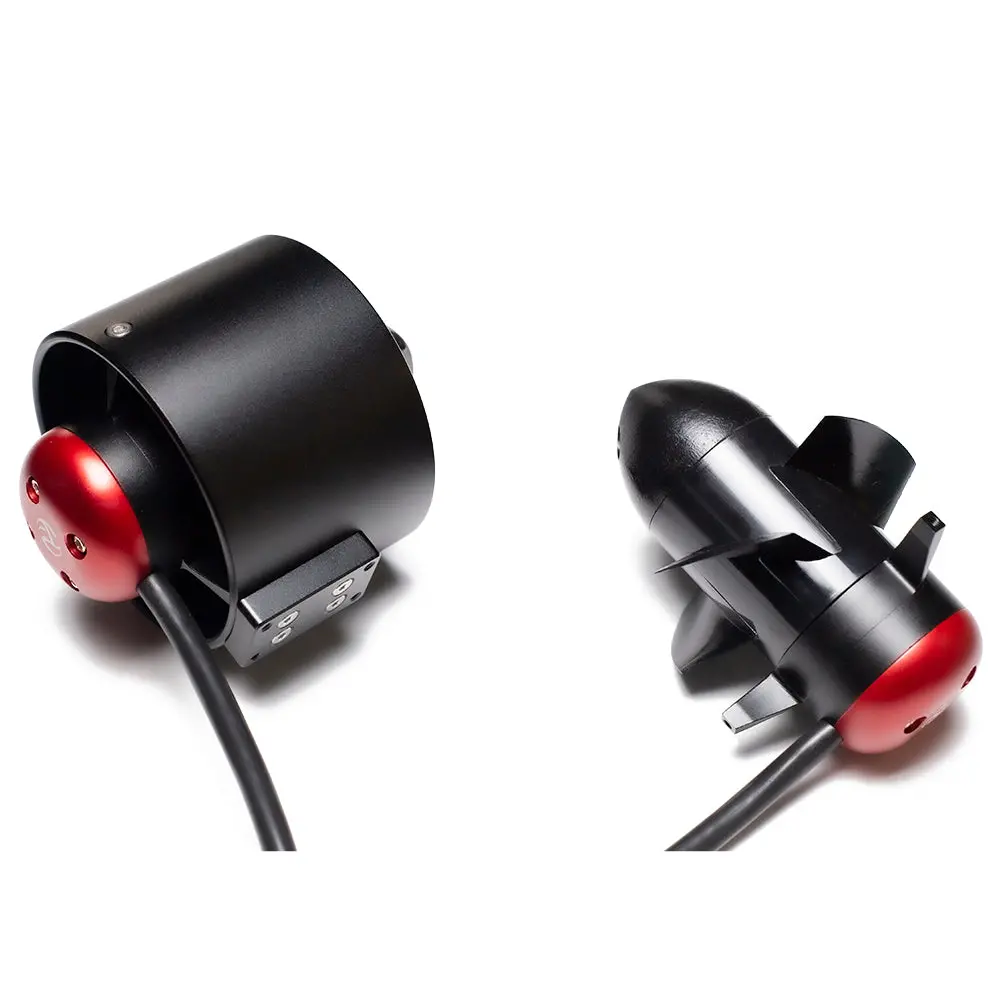

DESCRIPTION OF THE UNDERWATER THRUSTERS CW AND CCW
Material: aluminium alloy shell
Attention:
MU7 maximum voltage support up to: 29.4V (battery fully charged voltage);
The MU7 Pro supports a maximum voltage of 25.2V (fully charged battery voltage);
Features:
1: Full metal body, not afraid of cuts;
2: Anti-corrosion, anti-oxidation, can be applied to fresh water, seawater and other environments;
3: With bi-directional ESC, can control the propeller forward and reverse at the same time;
4: ESC waterproof grade IP68, can be directly soaked in water, rapid heat dissipation, to maintain continuous and efficient operation of the thruster;
5: The material of the perishable parts propeller is high-strength plastic, the maintenance and replacement cost is greatly reduced;
6: The wire is made of silicone wire, anti-corrosion and anti-oxidation, and can withstand high temperature of 200℃;

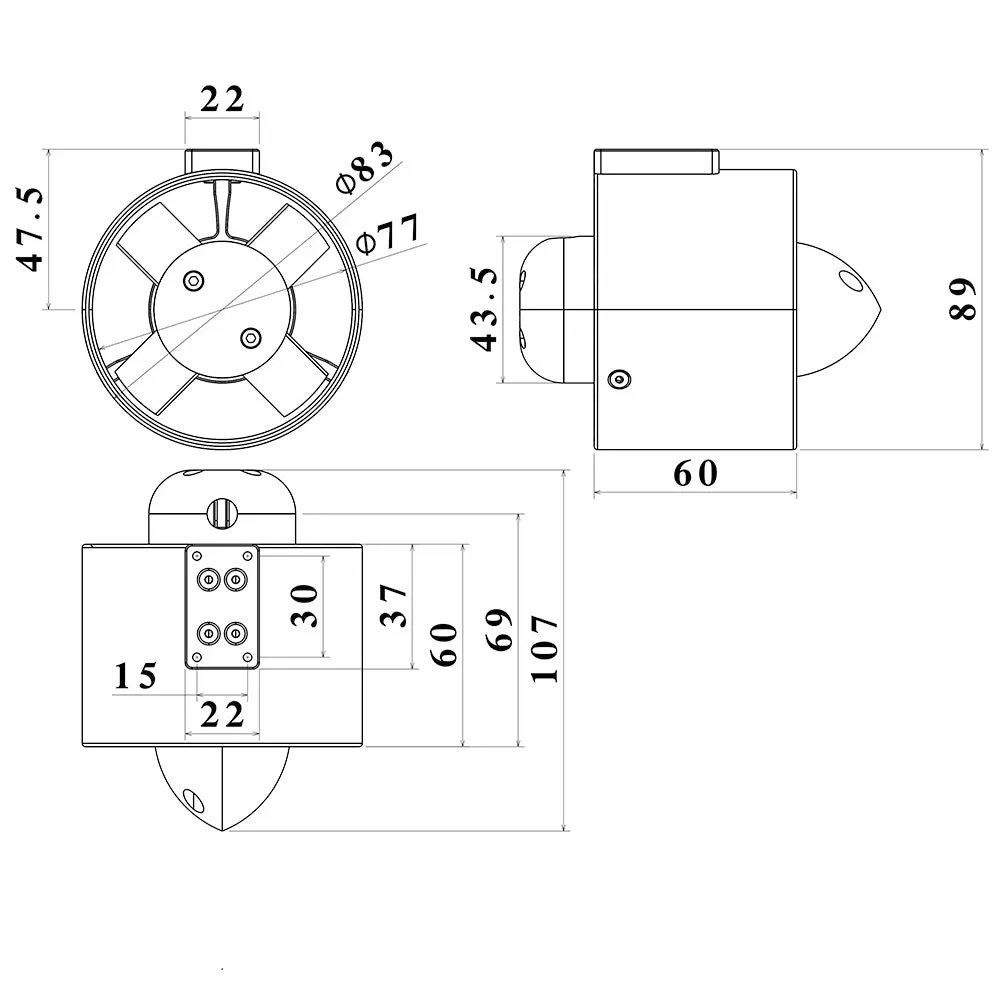

MU7 Thruster Dimensions:
Description of Underwater Propulsion CW and CCW
