Description
Caddx Polar Micro Digital FPV Air Unit Camera Kit is an advanced video transmission module that supports a 5.8GHz digital video signal and 720p 60fps image transmission.
The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!
Features
- Lightweight digital image transmission combination
- Stable and clear HD video
- 720p 120fps, 32ms/4km
- 8 channels, 8 drones
Specifications
- Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
- Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
- Operating Temperature Range: 0°to 40°C（32°to 104°F）
- Image Sensor: 1/1.8″ Inch 2.3Mega starlight sensor
- Supported Flight Control System: BetaFlight
- Min.Latency(end-to-end): 720p 60fps<32ms
- Polar vista kit Weight (Include camera): 28g
- Operating Frequency: 5.725-5.850GHz
- I/O Interface: USB-C,IPEX,3-in-1 port
- FOV: 162°(D); 138°(H); 75°(V)
- Min. Illumination: 0.00003Lux
- Antenna Weight: 1.5g(IPEX)
- Polar cam: 24×19×19mm
- Input Power: 7.4-26.4V
- Coaxial Cable: 120mm
- LENS: F/1.6 & 8Mega
- Vista: 30×29×13.5mm
- Aspect Ratio: 16:9
- Antenna: 105mm

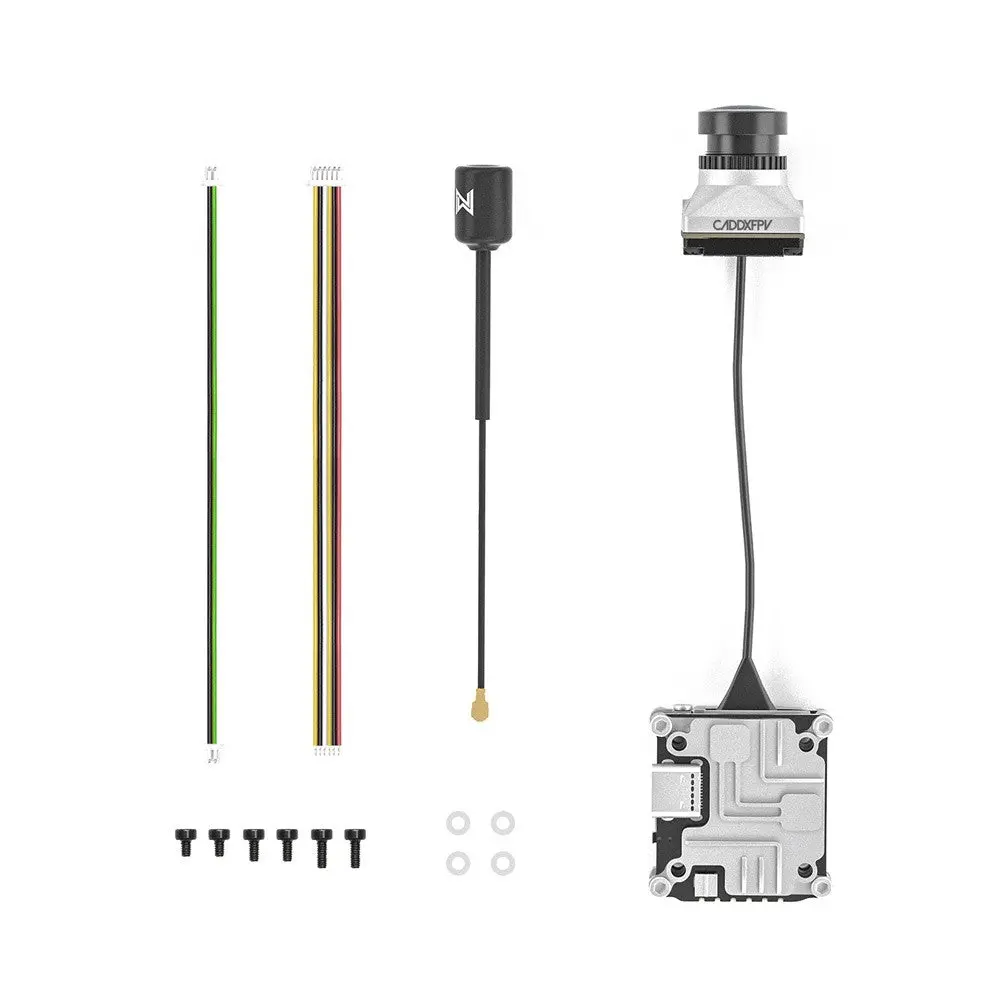

Includes
- 1x Caddx Polar Micro Digital FPV Vista Camera Kit (Silver or Purple options)
- 6x M2 Screws (3/4/5mm)
- 4x Gasket Ring
- 1x 3-in-1 Cable
