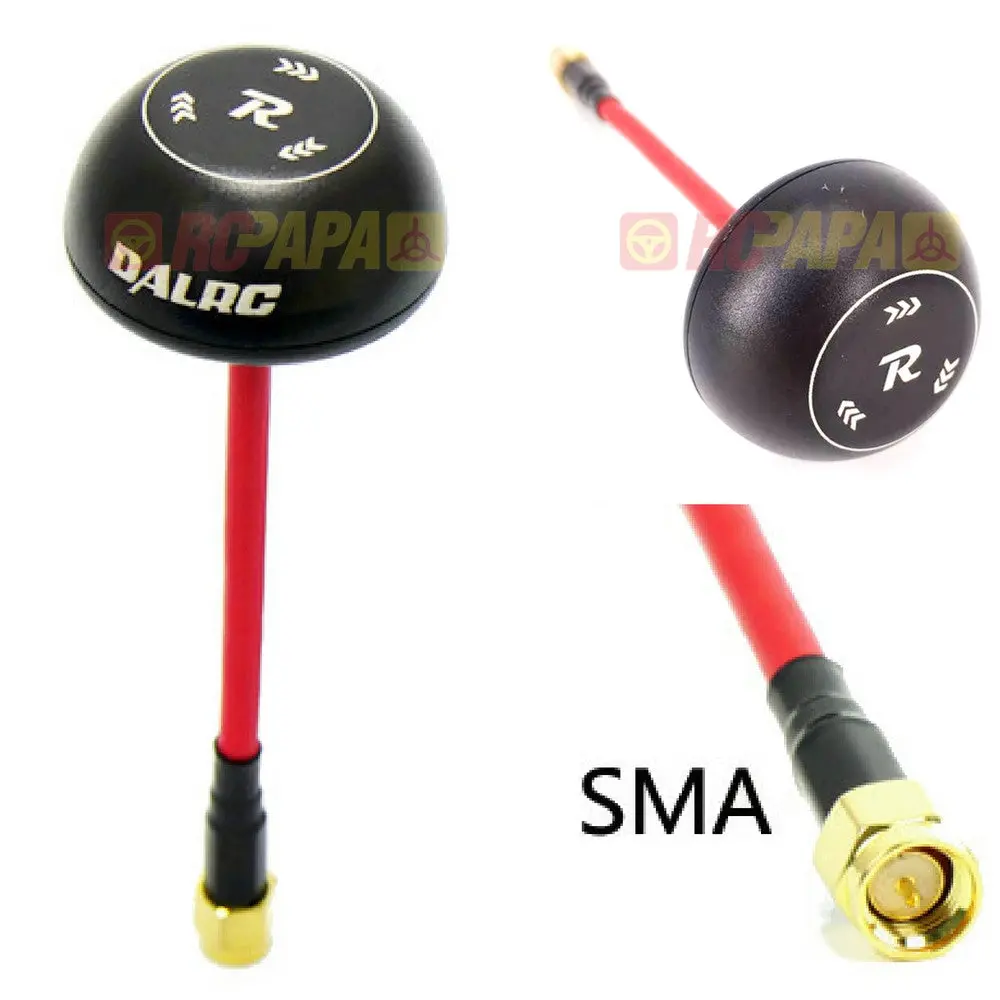

DALRC 5.8 GHz RHCP Cloverleaf Antenna – Omnidirectional Transmit/Receive

Description

Package includes :

DALRC 5.8G Circular Polarized RHCP Antenna x1

Summary

Designed for FPV racers, operating frequency 5600 ~ 5950MHz,Clover right-handed design, transmitting and receiving general, 3dBi gain, VSWR <1.5, covering the range of 360 °, using the Swiss HUBER + SUHNER original importedfeeder (up to 20GHz) , high feeder can be any angle bending strength . High-quality anti-skid heat shrink tubing, compact antenna structure, translucent design, resistant to deep-fried, simple to use.

Features :

Circular-polarized omni mushroom antenna

Can be used both at VTx antenna and VRx antenna

Specification :

Frequency range: 5600-5950 MHz

Gain : 3DBi

SWR: <1.5

3dB horizontal lobe width: 360°

3dB verticle lobe width: 120°

Polarization: omni

Max power: 50W

Resistance: 50Ω

Lightning protection: DC Grounded

Connector: RP-SMA or SMA

Size: 105×35mm (feeder line 75mm）

Weight: 12g

Material: Cu
