Description
– Supports DJI’s autopilot systems such as Woo Kong-M, Naza-M, Naza-M V2
– Provides Real-Time Flight Information
– Supports NTSC & PAL Video Input & Output

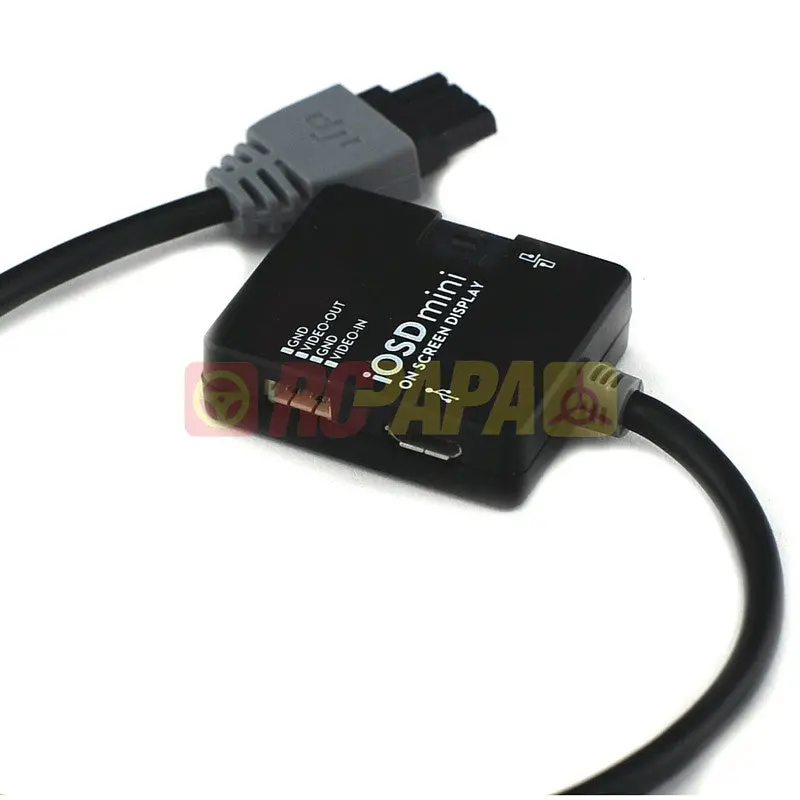

The DJI iOSD Mini On Screen Display is specially designed for a DJI autopilot system and it should be used with either WooKong-M, Naza-M or Naza-M V2. It can transmit video and iOSD information in real-time, which will help you to obtain the aircraft status information during first-person view (FPV) flights. The iOSD Mini can display multiple flight information specs including power voltage, flight velocity, height, distance from the home point, horizontal attitude, GPS satellite number and more. The iOSD will even superpose this data onto the video, so the iOSD data is clearly visible.
Conveniently, the iOSD Mini is compatible with both NTSC and PAL video source inputs. You can also use an R/C transmitter switch to remotely select which video source input you want to use. The R/C TX switch will change the wireless video transmitter channel remotely as long as you’re using a video transmitter specified by DJI. Plus, you can achieve double video alternation during flight by setting one video mode for the aerial camera and the other for the FPV.
Specs
Video Input Format: NTSC PAL
Video Output Format: NTSC PAL
Controller Supported: WooKong-M, Naza-M, Naza-M V2
Voltage: 6V
Working Current: 180mA at 6V (typical value)
Operating Temperature: -4 to 140 °F (-20 to 60°C)
