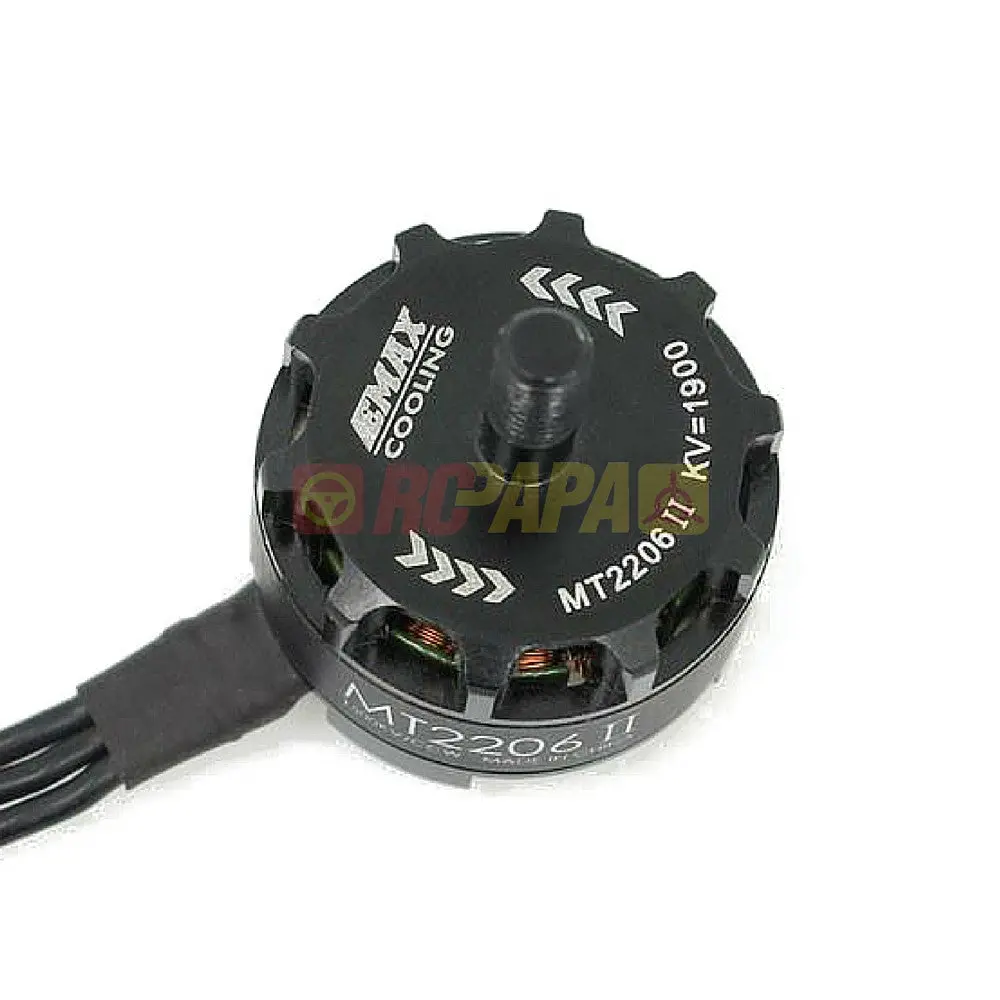

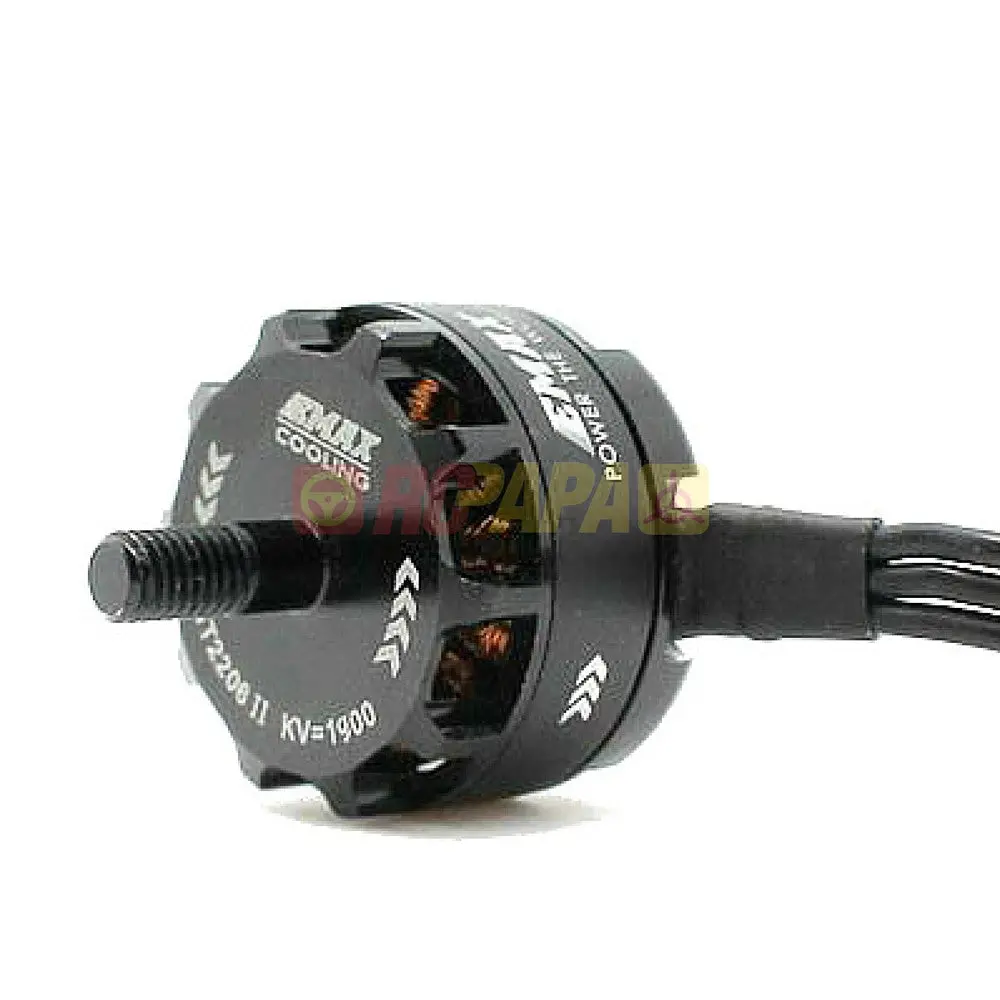

Emax MT2206 1900KV Cooled Brushless Motor for QAV250 Quadcopter

Description

MT2206II series motor is newly designed high-end brushless motors for multicopters, adopting cooling air suction system design.

Features

Air suction system design, rapid cooling, higher efficiency and longer life

U clip prevents bearing from loosening

Original NMB bearings, no counterfeit bearings from any other source

High precision CNC machining exquisite deisgn, stern quality control revealing the user taste and position

The rotation direction of motor was marked on the front bell, making it easier to determine rotation direction for CW and CCW motors

Low CG deisgn, decreasing vibration whe motor runs

Light weight built, Longer duration of flight

Designed for mini multicopters, better flight performance

CW and CCW propeller adapters included, holding the propellers tight

100% balanced, decreasing vibration to the minimum

Specification

KV: 1900kv

Max. thrust: 630g / 600g

Shaft : 3mm

Number of cell: 2-3s

Framework: 12N14P

Propeller: 8″-9 / 6″-8″

Length: 31.2mm

Diameter : 27.9mm

Weight: 31g (each)

Shaft: 3mm
