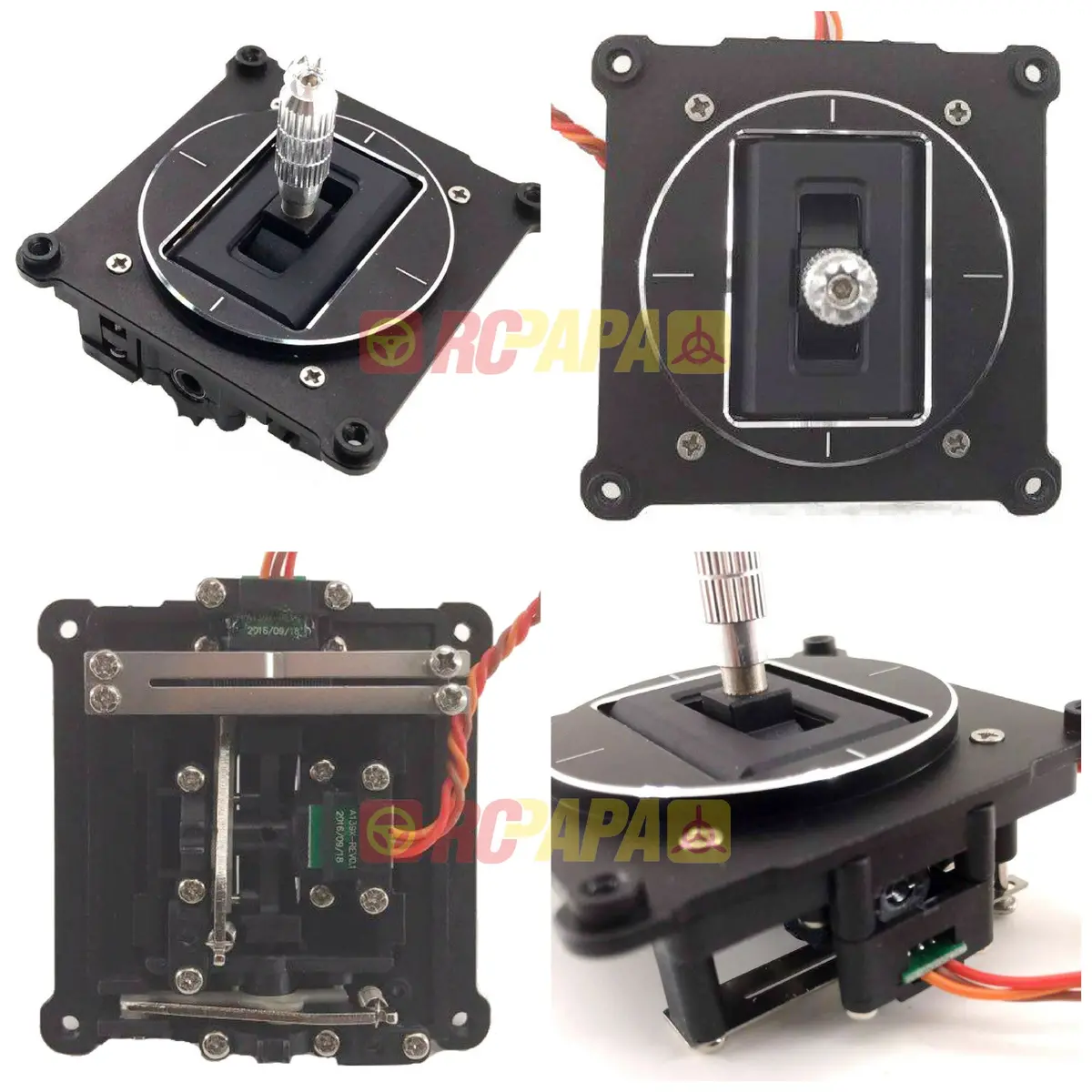

Frsky M9 Hall Effect Gimbal Module for Taranis X9D and X9D Plus Transmitters

Description

Package included :
1x FrSky M9 Gimbal

Summary

Upgrade your Taranis X9D with this plug-n-play high resolution M9 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

Features:
Hall sensor
4 ball-bearings
Adjustable tension
Can be enable or disable self centering on both axis and ratcheting on the Y axis
Special material quality that wears well

Specifications:
Brand Name: Frsky
Model: M9-Gimbal
Supply Voltage (VCC): DC 3.0 ~ ±0.5V
Sensitivity: 2.50 mV/G
Linear Output Voltage Range: 0.1 ~ (VCC +0.1) V
Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
Noise (no load): ≤40mVpp
