Description

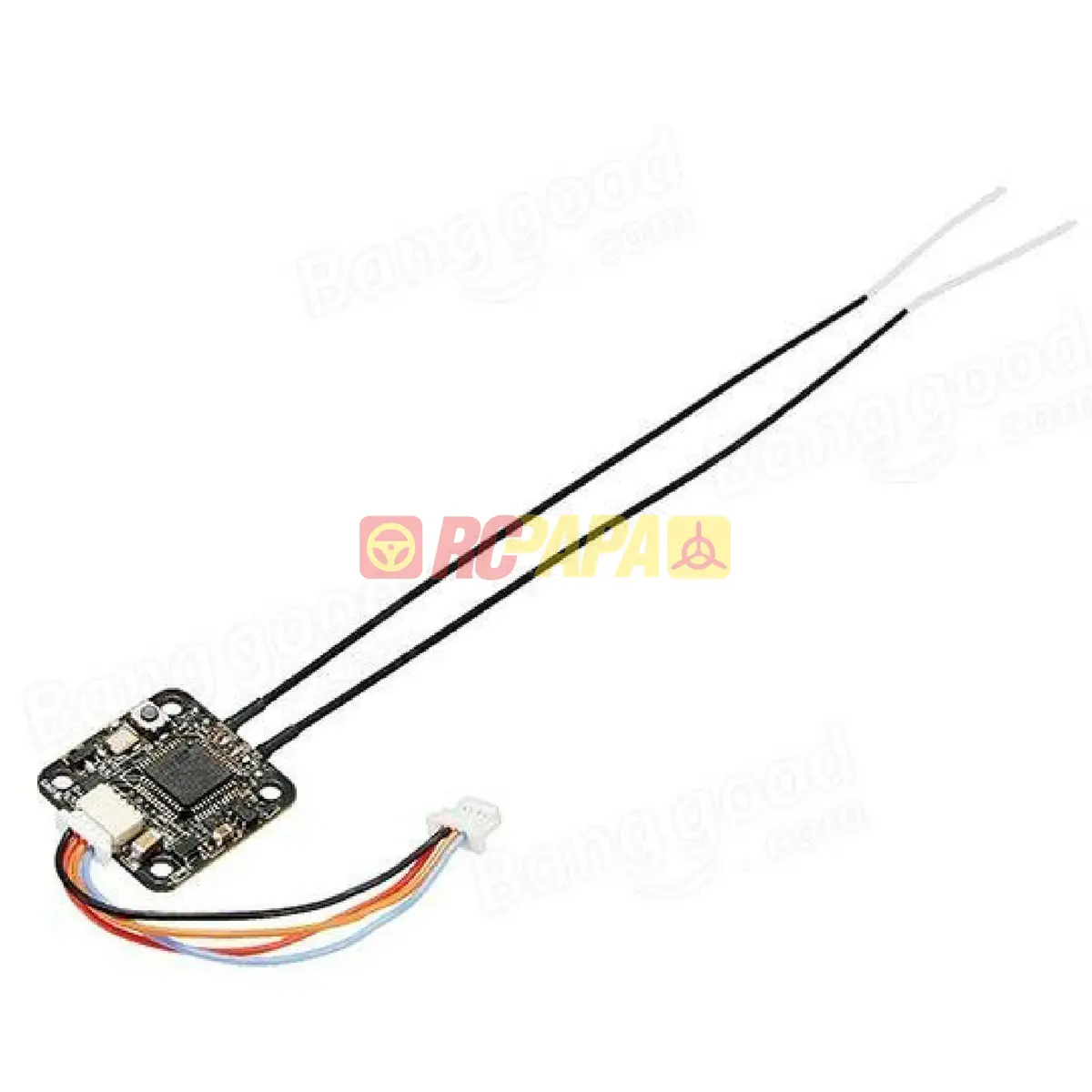

FrSky XSR-M full duplex telemetry receiver. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below.
Specifications:
Dimension: 20*20*1mm (L x W x H)
Weight: 1.8g
Number of Channels: 16Ch (1~16ch from SBUS channel, 1~8ch from CPPM channel)
Operating Voltage Range: 4.0~10V
Firmware Upgradable
Antenna: 15cm
Compatibility: FrSky X-series Module & radios in D16 mode
Features:
Smart Port enabled
S-BUS/CPPM output (BLUE LED stay lit indicates XSR-M in S-BUS mode, otherwise in CPPM mode)
How to switch S-BUS and CPPM signal: Long press the F/S button on the receiver for 3 seconds, the GREEN LED will flash thrice, indicating the switch is completed.
