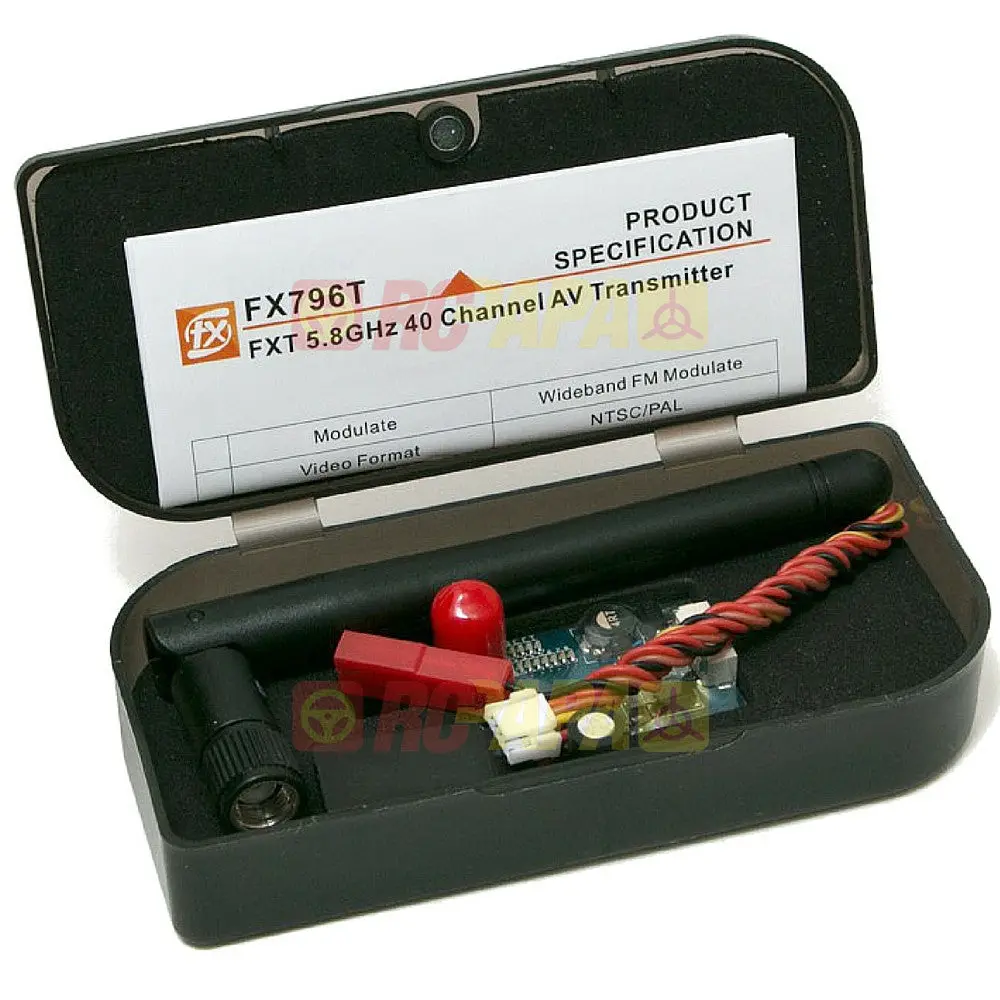

FXT FX796T 600mW 5.8GHz 40-Channel Analog VTX Video Transmitter with SMA Connector

Description

Specification
Modulate: Wideband FM Modulate
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 27dBm
Channel: 40 CH
Operating Voltage: 12V (7V-20V)
Supply Current: 260mA
Operating Temperature: -10~85°C
Video Band Width: 0~8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Connector: SMA Female (need to use SMA Male antenna)
Dimension(L X W): 31mm x 20mm
Weight: 7.5g
