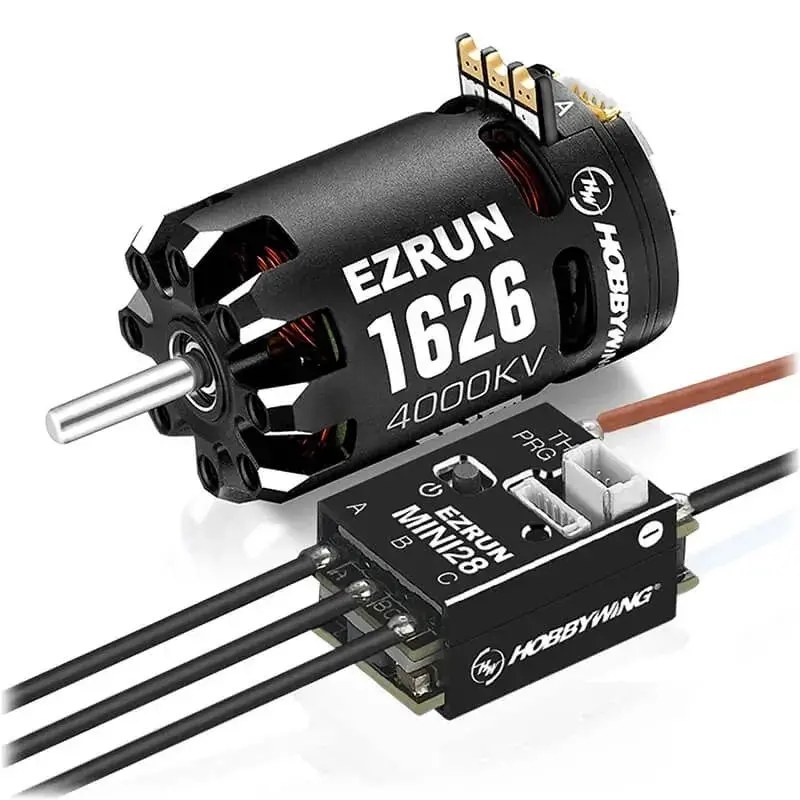

Hobbywing EZRUN Mini28 1626 SD ESC and Brushless Motor Combo for 1:28 Scale RC Cars

Price range: $39.99 through $65.00

Quantity
SKU: N/A Category: Brand:

Description

Specifications

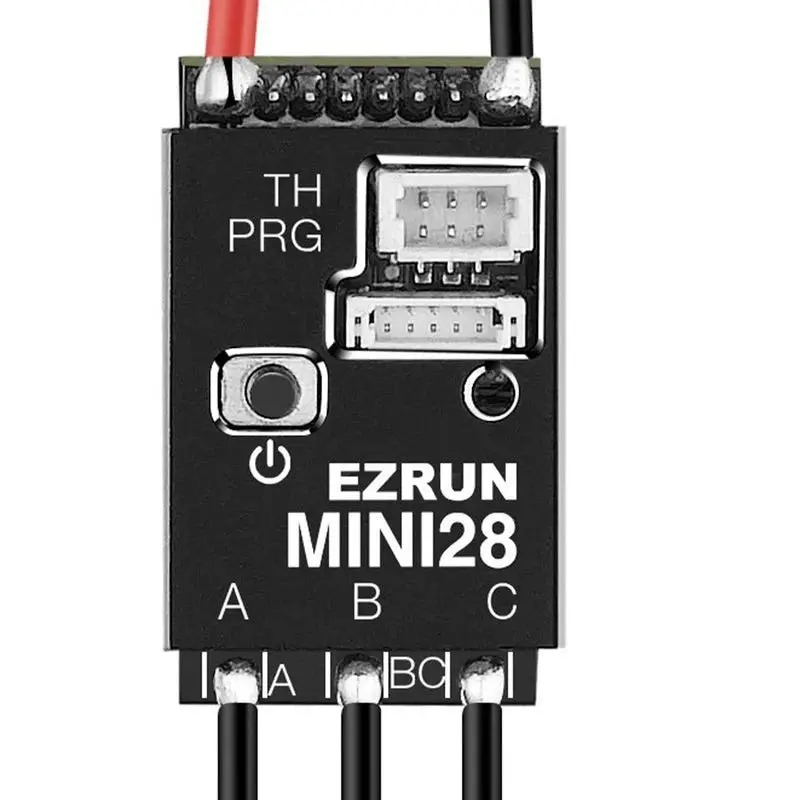

Product Title EZRUN Mini28 ESC
Part number 30101300
Technology Brushless Sensored
Waterproof No
Cont./Peak Current 30A/80A
Input Voltage 2S Lipo
BEC Output 6V/7.4V @Max 3.5A
Wires & Connectors Input Wires: 20AWG-55mm *
Output Wires: 22AWG-80mm *
Size & Weight 22.7×14.2×11.8mm | 5g (without wires)
Applications Motor: 1626 Size Motors
Vehicle: 1/28th&1/27th
ESC Programming LCD G2 Program Box
OTA Programmer
Throttle Wire
Firmware Upgrade Supported
Manual download

> User Manaual Ezrun Mini28th (PDF)
Product Brochure

> Ezrun Mini28 Leaflet-en

*All the wire length above is the original length not the length you see from the outside.

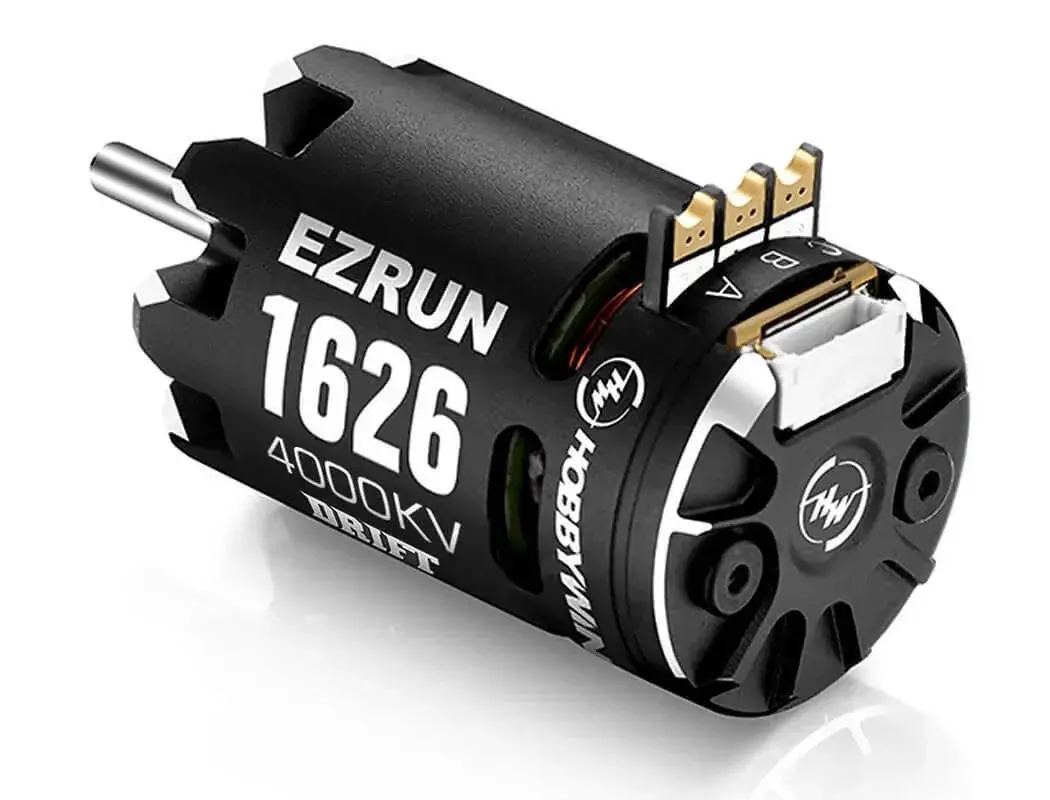

EZRUN 1626 Motor
Model Ezrun 1626-3500KV Ezrun 1626-5000KV Ezrun 1626-6500KV
PN 30402653 30402654 30402655
Pole 2 2 2
KV 3500KV 5000KV 6500KV
No-load Current(A) 0.4A 0.5A 0.6A
Input Voltage 2S 2S 2S
Diameter/ Length(mm) 16 16 16
Shaft Diameter/ Length (mm) 26 26 26
Applications 1/28th Mini 1/28th Mini 1/28th Mini
Weight 18g 18g 18g
