Description
Features
- Intelligent Freewheeling Technology:The intelligent freewheeling technology enables the ESC to achieve higher driving efficiency at lower operating temperatures, improving stability and reliability.
- Small and Compact:The new QuicRun WP 10BL60 ESC is more compact than its predecessor, reducing length by 2.5mm and width by 1.5mm, enhancing layout and wiring convenience.

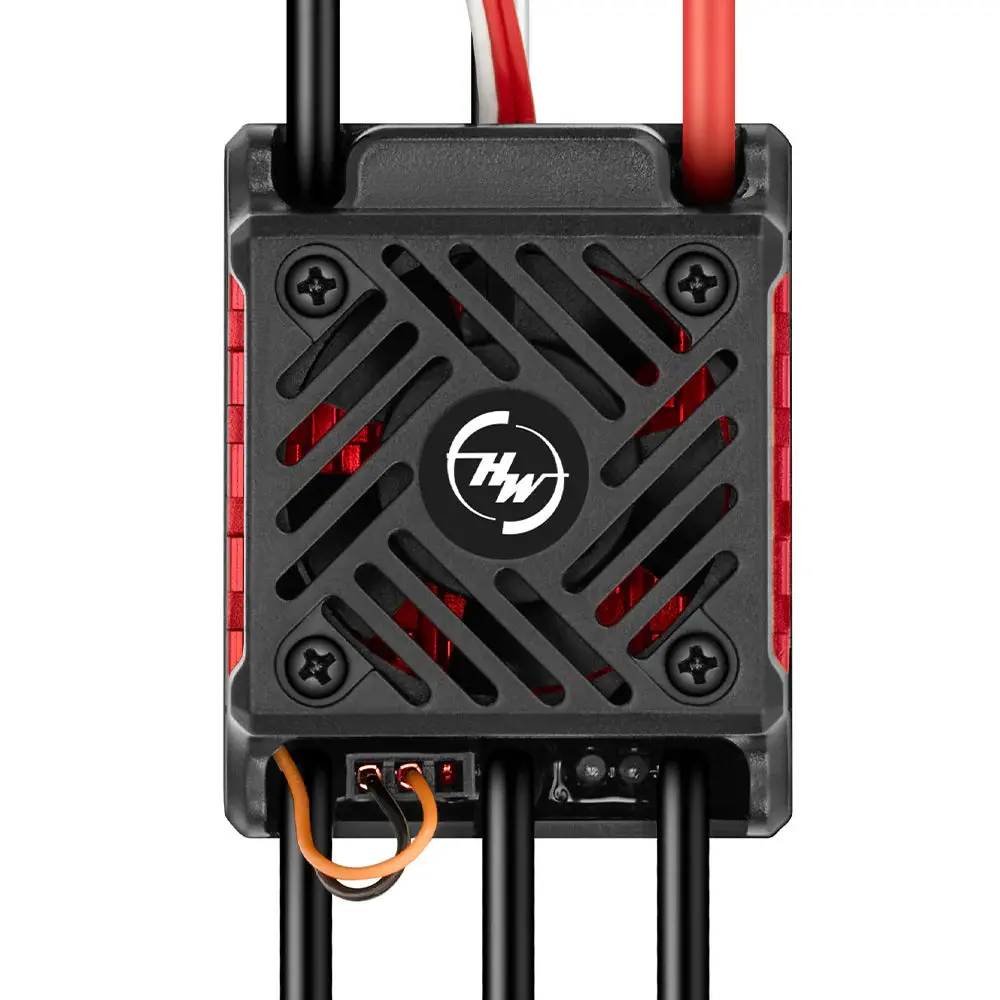

- Efficient Cooling System:The heat sink’s mesh design efficiently cools the ESC. Copper thermal bars on each phase enhance cooling, while a fan ensures optimal operating temperatures.
- Capacitor Overheating Protection:A mesh-type heat sink design rapidly conducts internal heat to the heat sink. Copper thermal bars on the power board further aid heat dissipation. A fan maintains efficient cooling conditions.
- All-Weather Operation Capability:With an IP67 protection level, the ESC excels in various environments, including rain, dust, and sand, thanks to its excellent waterproof and dust-proof features.
- Versatile Programming Methods:Supporting three programming methods—Multi-function LCD PRO programming box, LED programming box, and SET key—the ESC allows users to easily adjust parameters according to their preferences.
- Exceptional Value and Ease of Use:Designed for entry-level users, this high-quality product is simple to use and install, offering great value and convenience.
| Product Name |
|
| Product Number |
|
| Type |
| Scale |
1/10th |
| Brushed/Brushless |
Brushless |
| Sensored/Sensorless |
Sensorless |
| Waterproof |
Waterproof |
|
| Specifications |
| Cont./Peak Current |
60A/360A |
| Input Voltage |
2-3S Lipo |
| BEC BEC Output |
Switch Mode 6V @3A |
|
| Wires & Connectors |
| Input Wires |
Black-14AWG-150mm*1 Red-14AWG-150mm*1 |
| Output Wires |
Black-14AWG-60mm*3 |
| Input Connectors |
No |
| Output Connectors |
4.0MM Gold (female) |
|
| Fan |
| Size |
30.0×30.0x10.0mm |
| Voltage Range |
6V |
| Powered by |
BEC |
|
| ESC Programing via |
| SET Button on ESC |
Supported |
| LED Program Box |
Supported |
| LCD G2 Program Box |
Supported |
| LCD PRO |
Supported |
| OTA Programmer |
Not Supported |
| Program Port |
Shared with fan port |
|
| Data Recording |
| Extreme value |
Not Supported |
| Real-time Data |
Not Supported |
| Historical data (Graph) |
Not Supported |
|
| Firmware |
| Firmware Upgrade |
Not Supported |
|
| Size & Weight |
| Size |
46*36.5*34.3mm |
| Weight |
82.6g (Included wires&connectors) |
|
| Applications |
| Motors |
Sensorless / Sensored Brushless Motor (only in sensorless mode) |
| Vehicles |
1/10th On-road,Buggy,Short course truck |
| KV Rating/T Count |

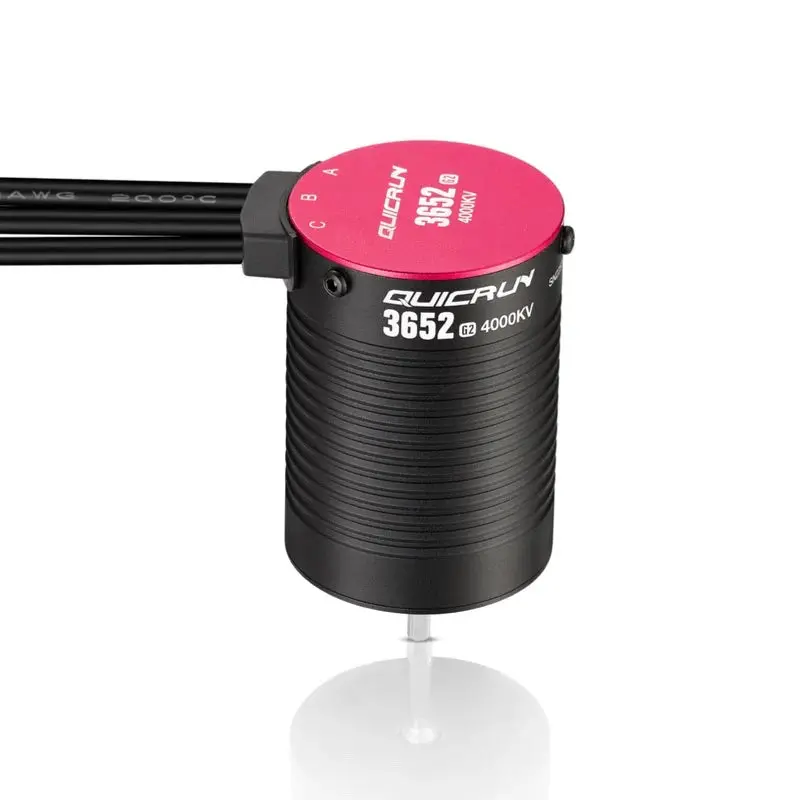

2S LiPo:KV≤6000；3S LiPo:KV≤3500（3652/3660 size motor） |
|
