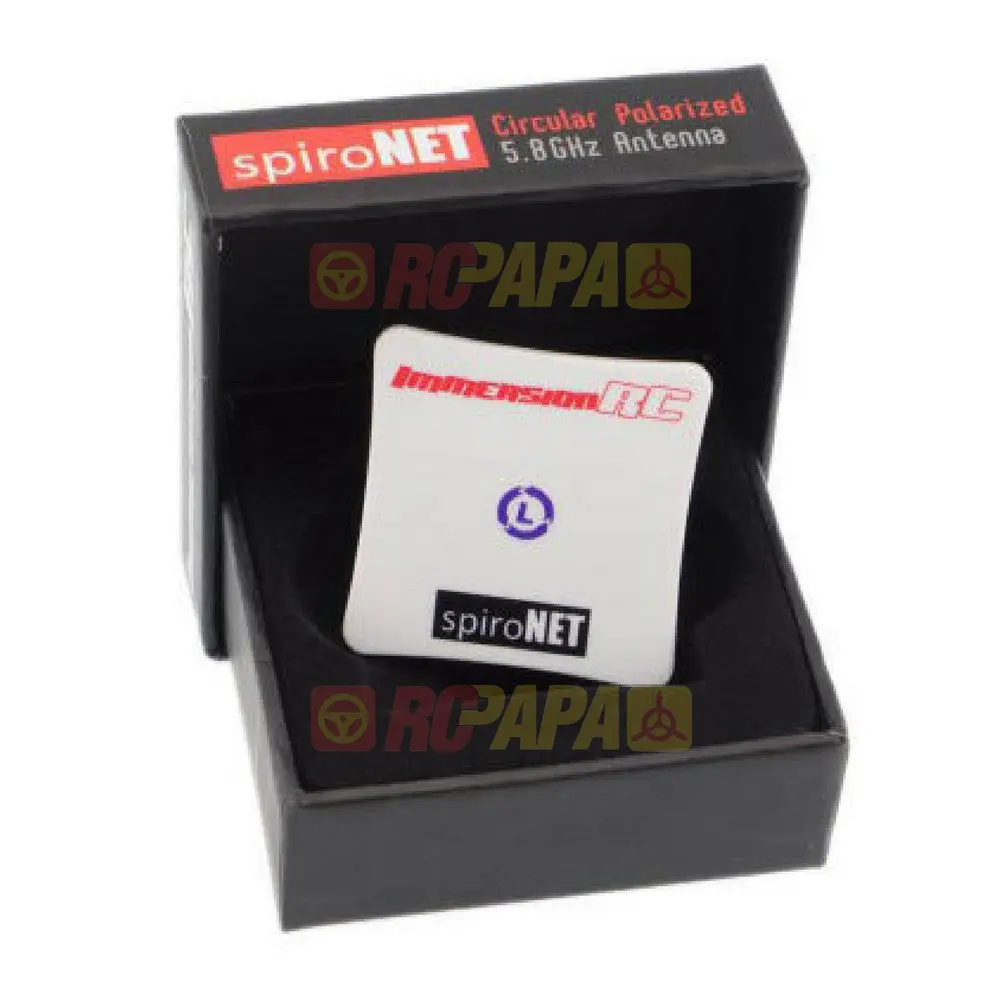

ImmersionRC Spironet 5.8 GHz 8 dBi LHCP Mini Patch Antenna

Description

This 5.8GHz Left-Hand (LHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.

Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance

SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date

Left-Hand circular polarization

5.8GHz ISM Band

8dBi gain

Beam width -3dB at +/- 45 degrees (H + V) (90 degree total)

F/B Ratio >356dB

VSWR < 1:1.35 at 5800MHz

Impedance 50 ohms

Weight 7g
