Description
Summary

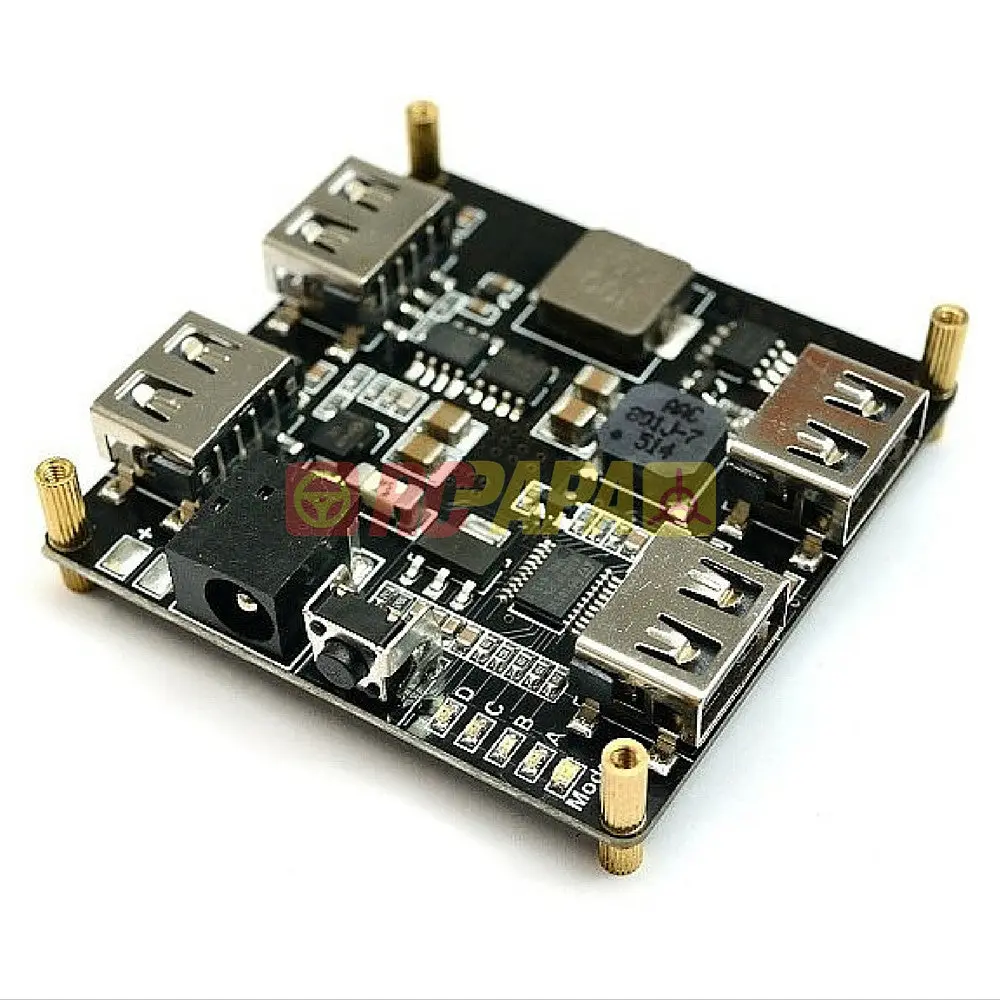

Matek UPA64 is a high-efficiency, DC/DC synchronous buck regulator that works with 7~26Vdc Input. The device is capable of supplying 0~6A of output current with an output voltage 5.3Vdc, compatible with any USB based device. It can support wide power sources, such as any AC-DC power adapters(voltage range 7~26V), 2~6Cells Li-poly battery, Auto cigar-lighter slot, etc.
Features
Synchronous buck regulator
2 USB ports support IOS devices with 2.4A，
2 USB ports support Android & other devices
Input voltage cut-off setting & alarm for LiPo
12V Auto battery voltage indicator & alarm
DC 5.5*2.1 Input socket & Input pads
Multiple protection functions,
Cycle-by-cycle current limit (8A)
Output over-voltage protection (5.7V)
Short-circuit protection
Thermal shutdown (120°C)
Specifications
Input voltage range: 7~26V DC
Output: USB 5.3V, 0~6A, Max.8A
Efficiency: up to 95%
Standby current: 10mA
LiPo voltage cut-off setting: 3.4~3.7V/cell
Size & weight: 59x59x17mm, 45g
** Download Manual (English)
