Description
Summary
The 1207TG is a premium servo from Power HD with a standard-size footprint but a very low height, resulting in a unique low profile that reduces weight and allows use in applications with tight space constraints. It has a coreless motor with an all-metal gear train, digital control electronics, and two ball bearings on the output shaft. Servo horns and associated hardware are included.

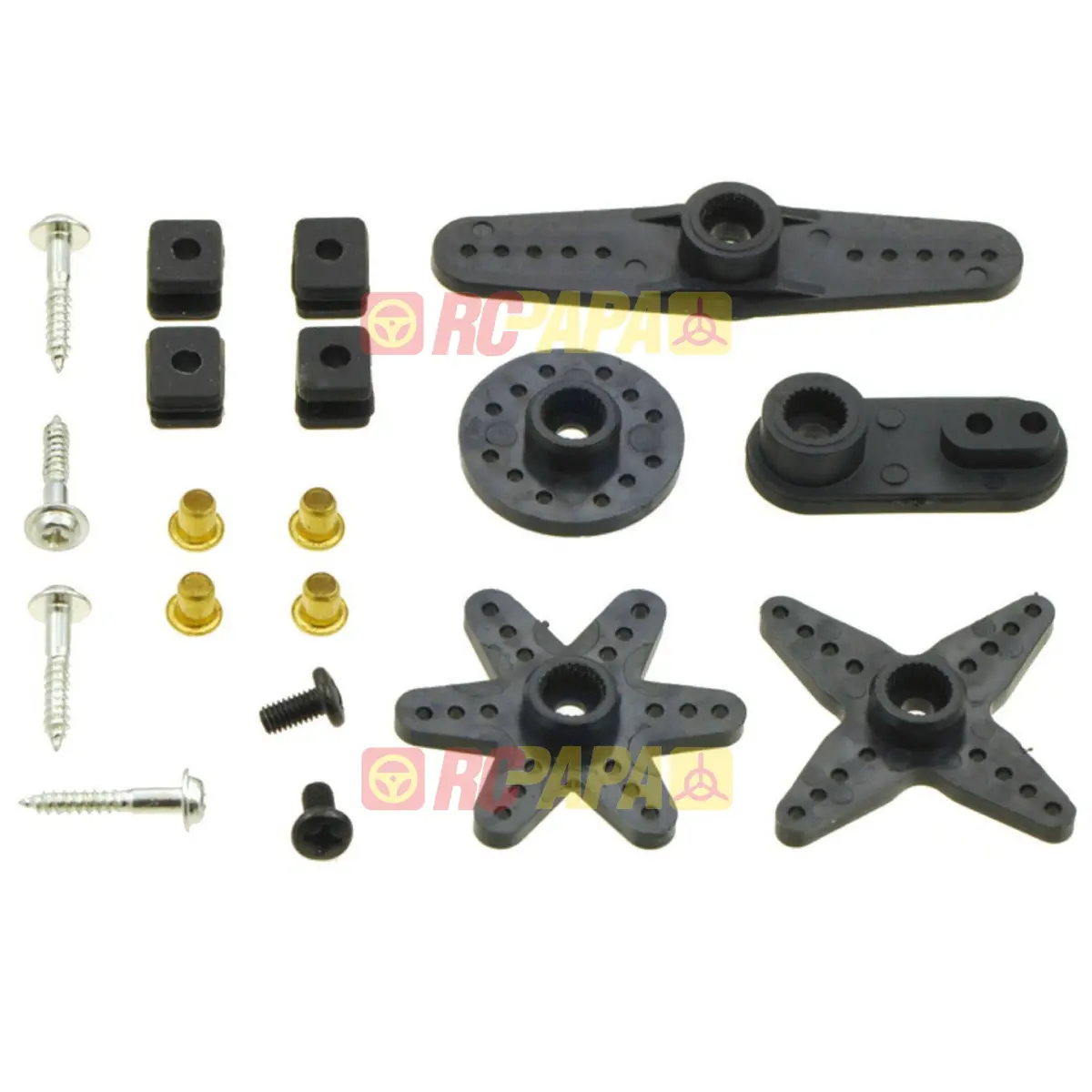

Digital electronics combined with a coreless motor, titanium-shielded aluminum gears, and two ball bearings give this servo a distinct edge over typical standard-size servos. The 1207TG works with standard RC pulses at frequencies up to 333 Hz. The 12″ (300 mm) lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. The picture below shows an example of the hardware that might be included with this servo (hardware might vary).
Spec:
Torque(4.8V): 7.0 kg-cm (97.21 oz/in)
Torque(6.0V): 8.0 kg-cm (111.10 oz/in)
Speed: 0.10 sec (4.8V) │ 0.09 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 48 g (1.69 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.3 x 20.2 x 26.1 mm ( 1.59 x 0.80 x 1.03 in)
