Description
Summary

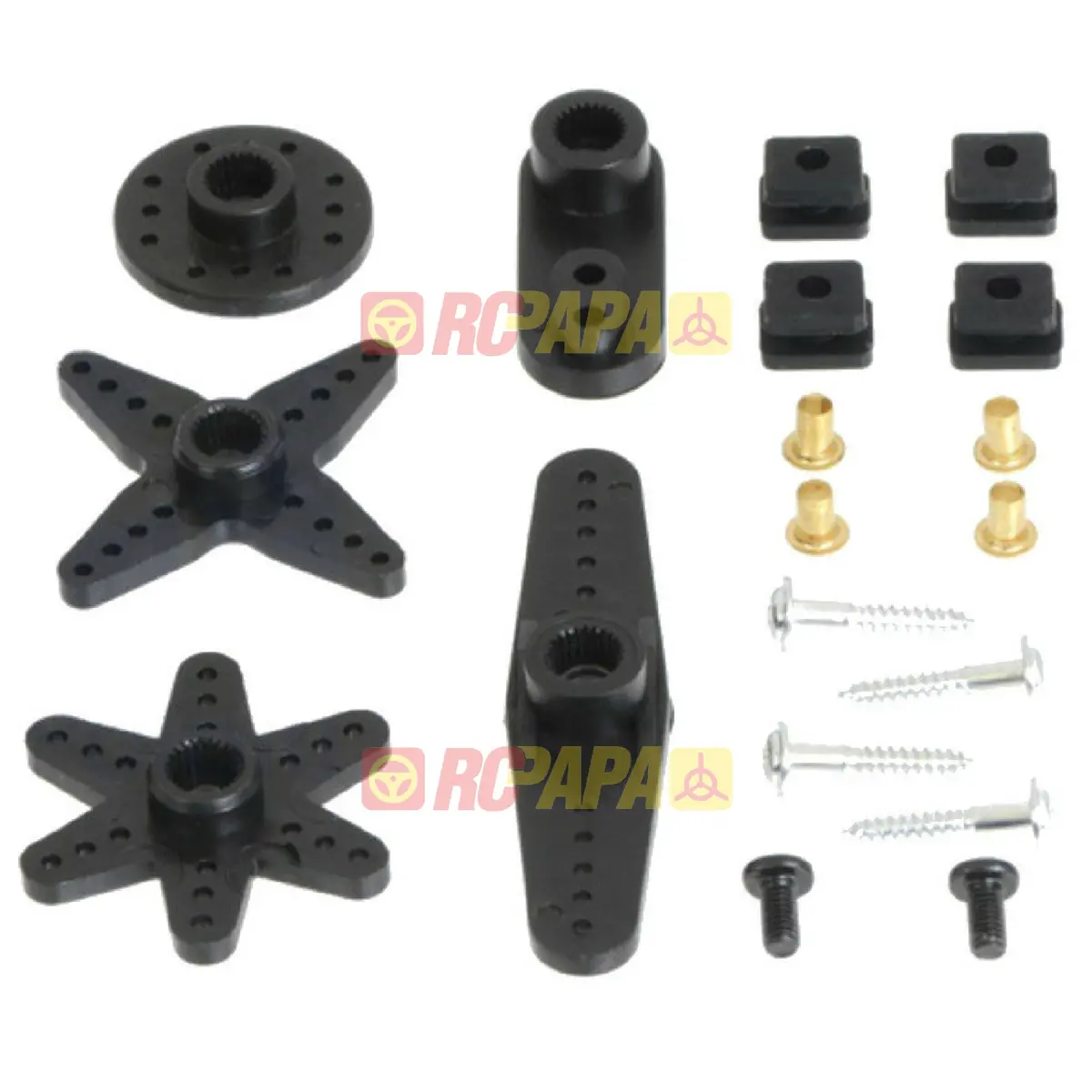

The HD-1501MG is a great high-quality, standard-size servo that features metal gears and two ball bearings and can deliver a tremendous amount of torque for a servo this fast. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. The picture below shows an example of the hardware that might be included with this servo (actual hardware might vary).
Features:
For 1/10 Monster Truck & 1/14 Tractor Trucks
Material: Metal Gear and Plastic Case
Color: Black
Fit Futaba Servo Horn
Spec:
Torque(4.8V): 15.5 kg-cm (215.3 oz/in)
Torque(6.0V): 17.0 kg-cm (236.1 oz/in)
Speed: 0.16 sec (4.8V) │ 0.14 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 63.0 g (2.22 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 50hz
Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)
