Description

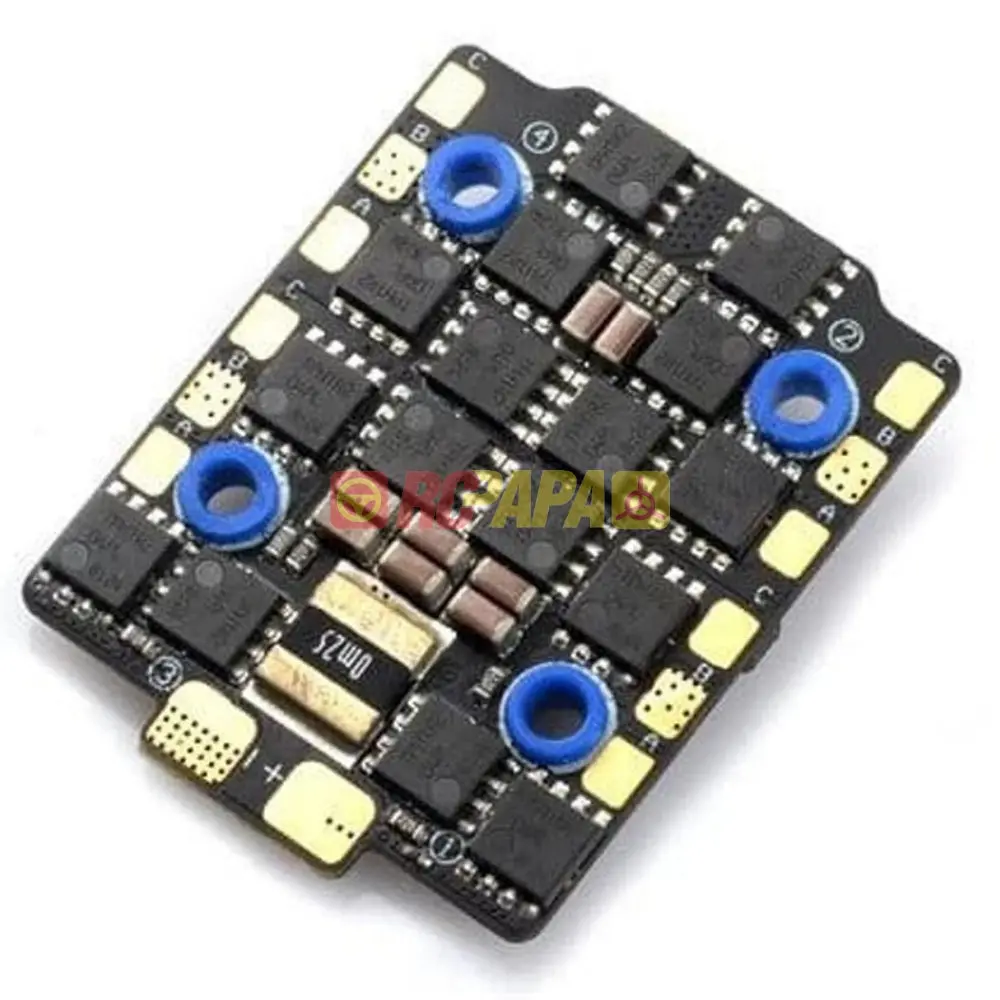

Spedix GS40F Mini is an reliable 20x20mm 6S 4-In-1 ESC. Limited by the smaller size of 20x20mm ESC, engineers have usually used a 3mm mini MOSFET, which is vulnerable to the ever-growing demand of power and current/voltage of the FPV market.
With Spedix’s innovative design, separating the control board and the power board, they have successfully implemented a full-size 5x6mm MOSFET onto this 20x20mm ESC.
By combining reliable hardware with the fastest GD32F3 MCU in the market, Spedix is able to present you with a high performance mini 20x20mm ESC of extreme reliability and responsiveness.
Features
Innovative double deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4IN1 ESC.
40V MOSFET improves the overall reliability in fast response to throttle signals，making the 6 cell input capable in the real world
GD32F3 MCU provides highest responsiveness in the market.
Extremely small size makes mounting on smaller frames easier than ever.
Specifications
Brand: Spedix
Model: GS40F Mini 4 in 1
Input: 3-6 Cell LiPo
Continues Current: 40A
Burst Current: 50A (10 Seconds max)
Firmware: Blheli-32
Dimensions: 40x31x8mm
Mounting holes: 20x20mm
