Description

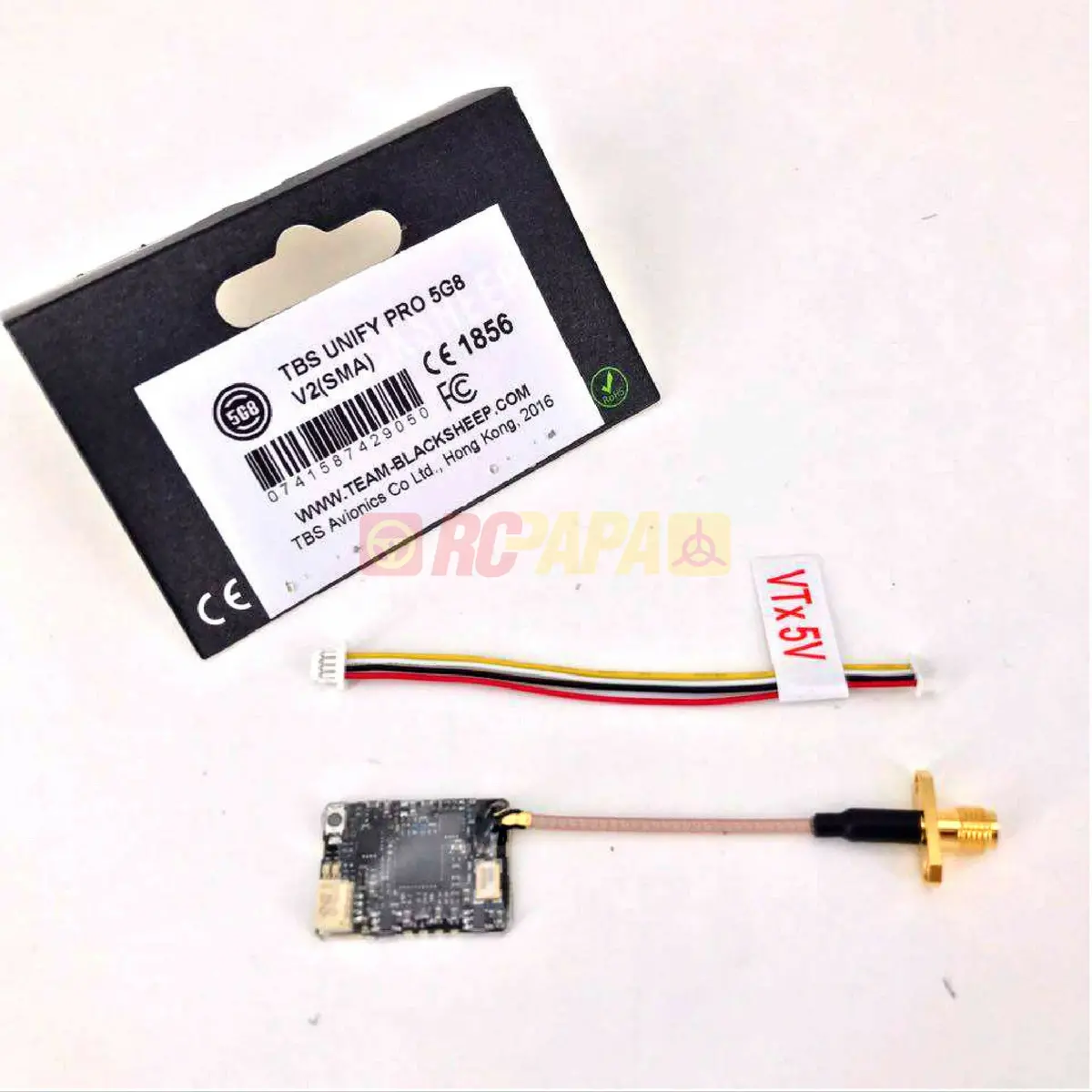

Package included :
TBS UNIFY 5G8 Video transmitter
5V Video Transmitter pigtail cable
** SMA Version **
Summary
A video transmitter just for racers. 5g weight, 25 – 800mW output power (user adjustable). Cutting weight and flying far has never been this easy and affordable.
The smallest and most powerful (800mW!) video transmitter the world has ever seen! It’s race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly changing channels. It runs off a filtered 5V power supply, so it’s perfect when being connected to a TBS CORE PRO or TBS PowerCube.
Features :
Smallest, lightest video transmitter on the market
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode – power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified
Spec :
Operating Voltage: 4.5 – 5.5V
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 5g
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)
* HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled, please consult the manual on unlocking procedure.
