Description
INCLUDES

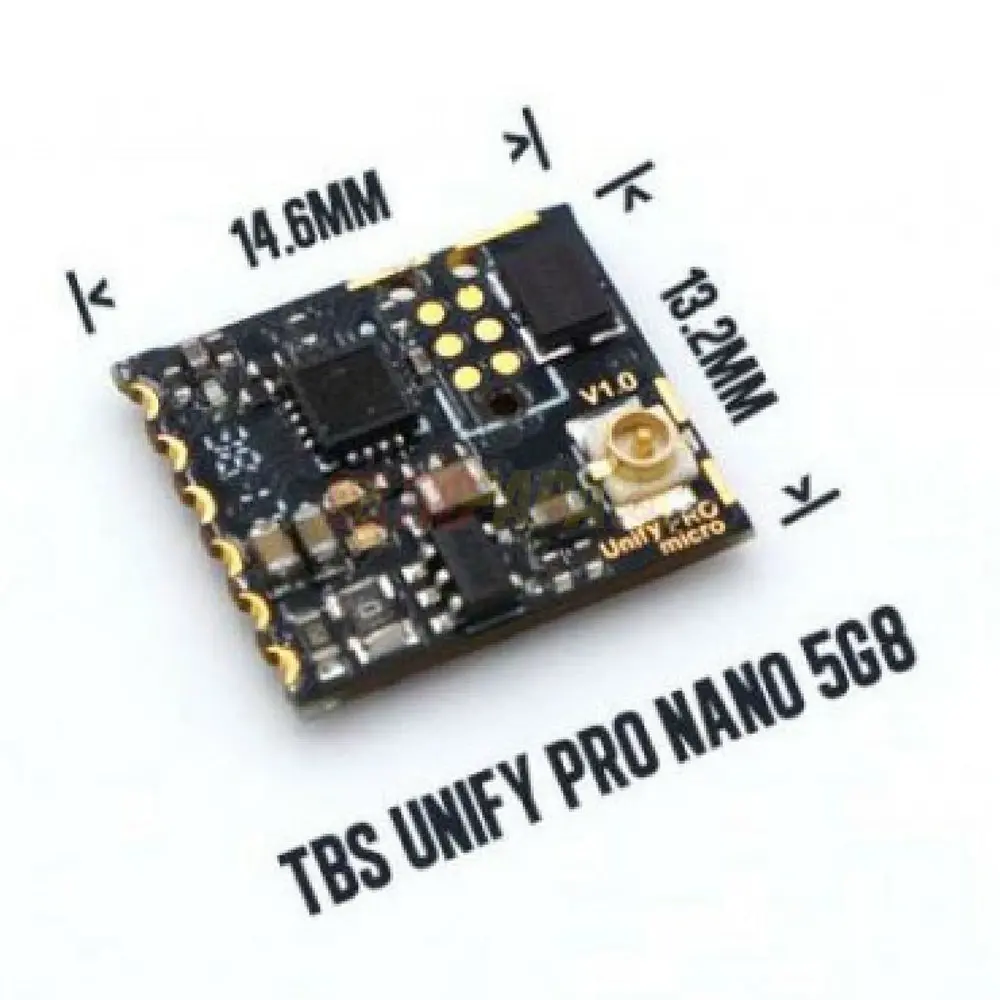

1x Unify Pro nano 5G8 VTX
1x button switch
1x TBS UNIFY PRO 5G8 Linear Antenna
6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
The world’s smallest FPV video transmitter with 25mW / 50mW power levels, Smart Audio and u.FL
SIZE MATTERS!
As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.
SPECIFICATIONS
Input Voltage: 4.5V – 5V
Power levels: 25mW / 50mW
Interface: SmartAudio and capacitive button (or solder external tactile button separately – included!)
Weight: 1.4g (incl. antenna)
Size: 13.2mm x 14.6mm
Antenna connector: u.FL (upgraded)
Antenna length: 45.6mm (end to end)
TBS Tech: Smart Audio, Clean Switch
