Description

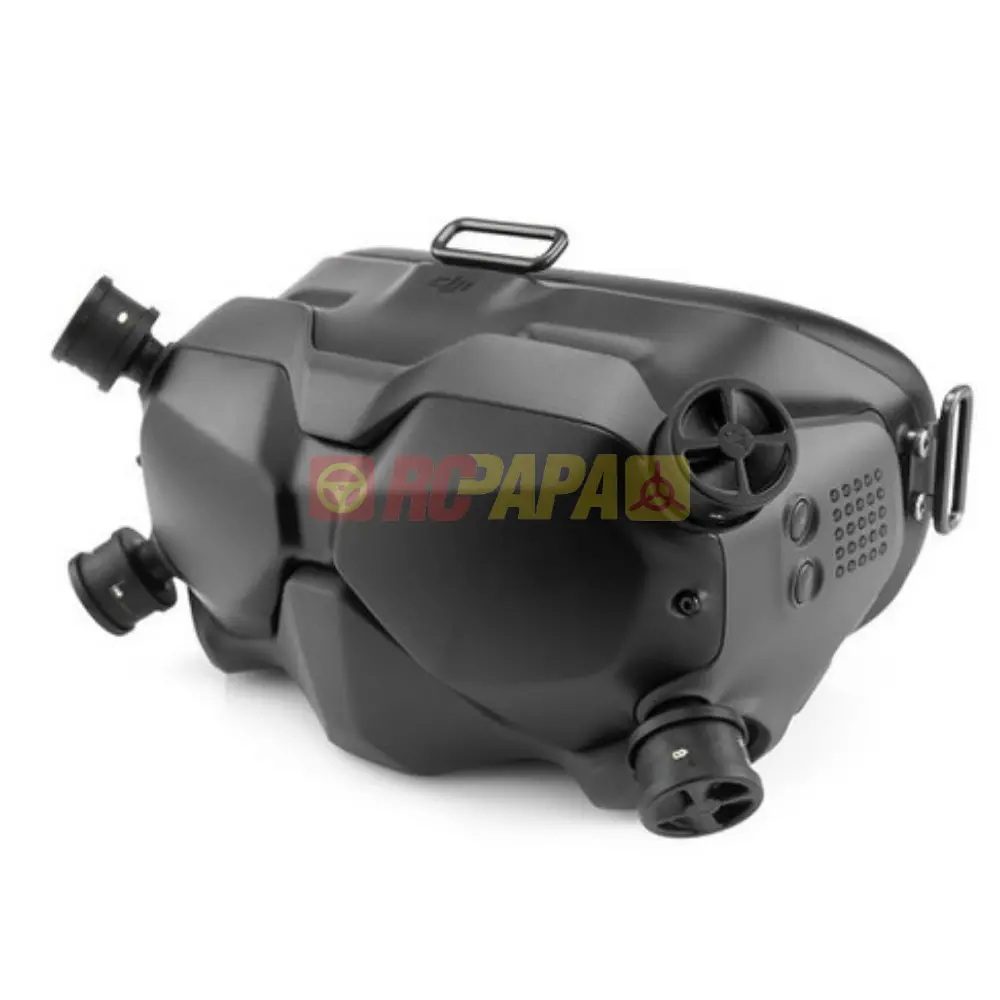

TrueRC never stop! The Duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV goggles V2, letting you leaving them on at all times, thanks to a much lower profile than the stock linear antennas. Each unit is hand tuned on a professional analyzer so you get the most of your digital HD system.
SPECS:
Gain: 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
Polarization: LHCP
Cross-Polar Rejection: -15 to -30dB, (2.2%)
Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Weight: 5.25g
Dimensions: 23.3mm dia. X 22.0mm height
Connector: RP-SMA
