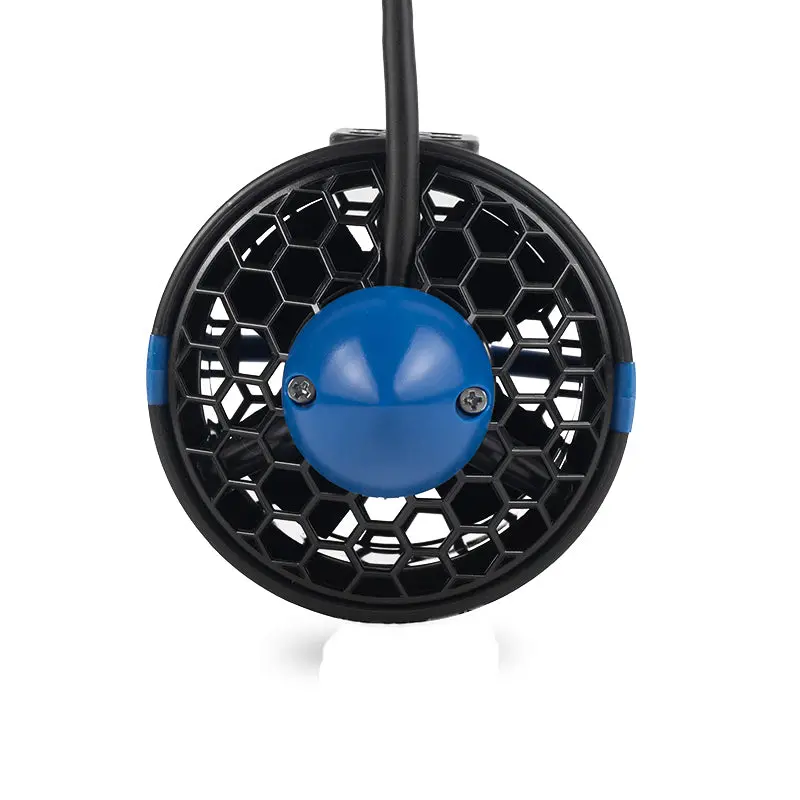

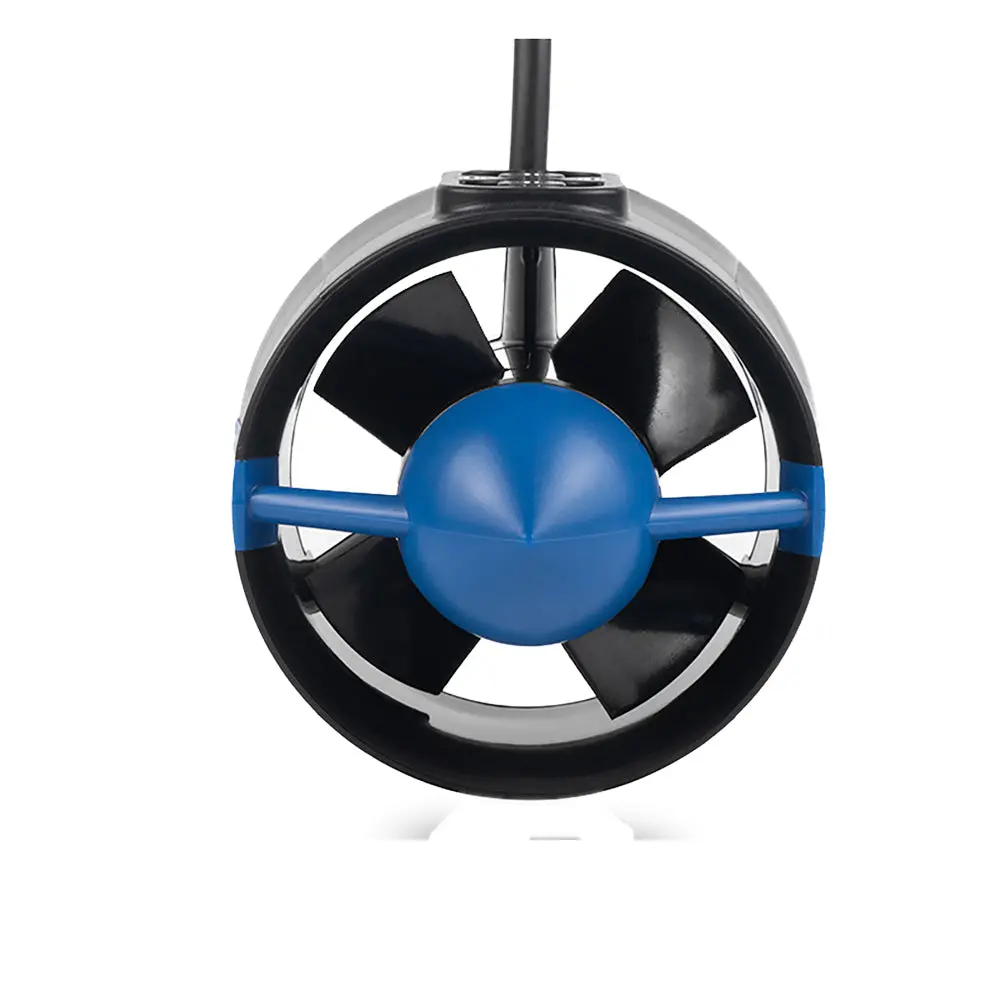

U8 Subsea Thruster – 12V to 24V, 7kg Thrust Underwater Propulsion System with Built-in ESC for ROVs and Autonomous Surface Vessels

Description

APSIQUEEN U8 underwater thruster with Feather 100A ESC usage：

APISQUEEN U8 underwater thruster with built-in ESC usage:

We are the source factory, for bulk purchase / customization please contact us at lynn@underwaterthruster.com.

U8 170KV Support voltage: 12-25.2V (3-6S LiPo)
U8 290KV Support voltage: 12-20V (3-5S Lipo)

Model: U8
Voltage: 12-24V (3-6S LiPo)
Max. current: 28A
Maximum thrust: 7.4Kg
Maximum power: 750W
Size: 128*101mm
Wire length: 900mm
Weight: 450g
Mounting holes: 4*M3

DESCRIPTION OF THE UNDERWATER THRUSTERS CW AND CCW

ABOUT PWM

PWM full name is (Pulse-width modulation). It is also called duty cycle signal, which indicates the proportion of the high level duration to the whole signal period. 2ms for the whole period of PWM, 1.5ms stop, 1.5-2ms forward, 1.5-1ms reverse.

From the diagram, we can clearly see that when PWM is 75% (1.5ms), the motor stops rotating, when PWM is 50% (1ms), the motor rotates in reverse, and when PWM is 100% (2ms) the motor rotates in forward.Of course ESC will not only make the motor turn forward and reverse, but can adjust the speed of motor rotation by the duty cycle size of PWM. When the PWM is gradually changed from 75% to 50%, the motor will keep reversing and accelerating from stop until the reverse rotation reaches the maximum. And when PWM is gradually changed from 75% to 100%, the motor is continuously accelerated from stop to forward until the forward rotation reaches the maximum value. That is, PWM is a signal that can be continuously varied, and the effective range is from 50% to 100%.

The frequency of PWM signal is 50hz, 100hz, 200hz or 500hz, etc. The higher the control frequency, the shorter the period, the shorter the control interval, and the faster the ESC and motor response speed The faster the ESC and motor response. Conversely, the lower the control frequency, the longer the period, the longer the control interval, and the slower the ESC and motor response.
