Description

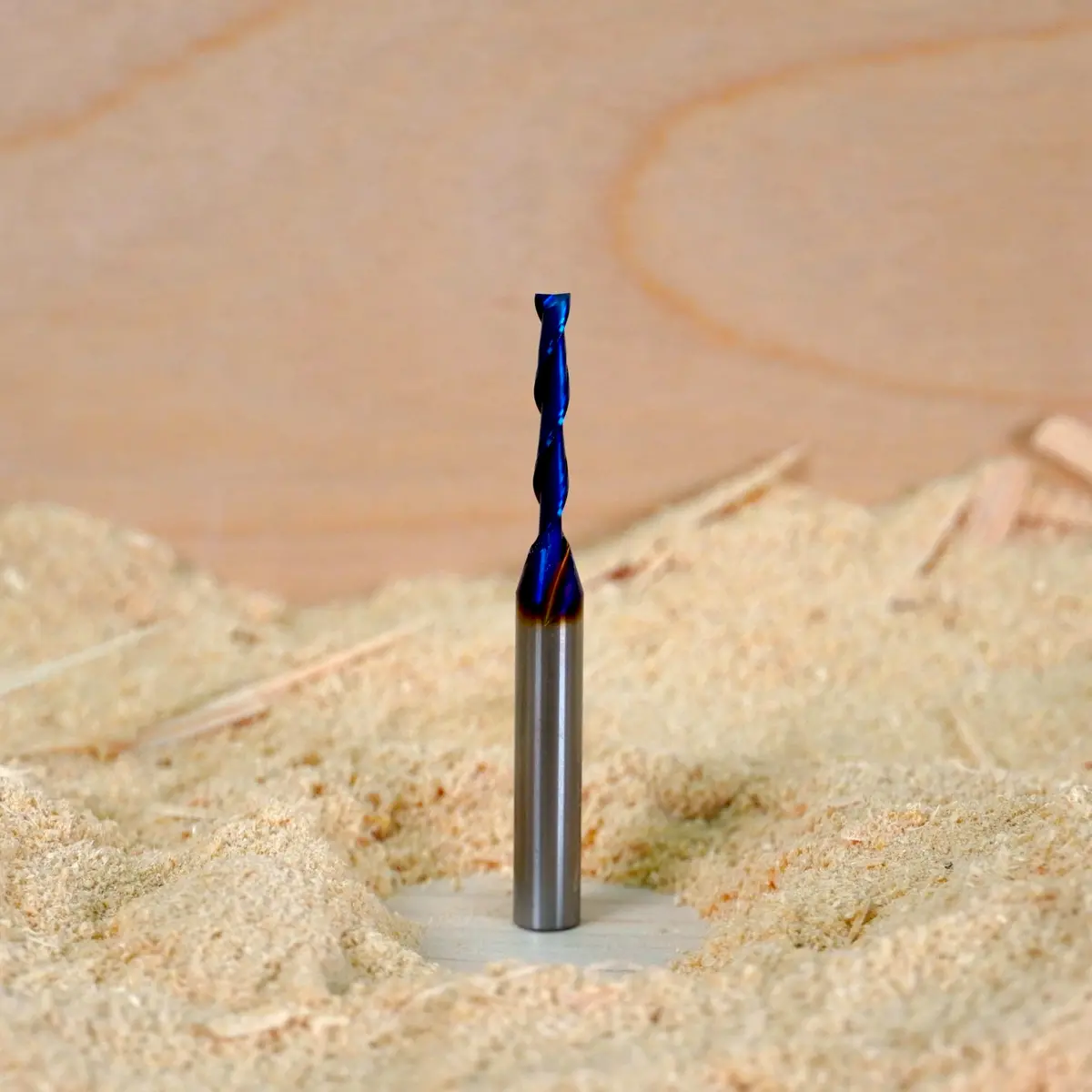

1/8″ Up-Cut End Mill
Tungsten Carbide • Nano Blue Coated
Overview
Built for efficient chip evacuation and clean bottom-edge finishes in pockets, slots, and deeper cuts. The up-cut geometry pulls chips up and out of the cut to help reduce heat buildup, while the rigid 1/4″ shank improves stability on spindle-driven CNC machines.
Best For
- Pocketing
- Slotting
- Deeper cuts
- Efficient material clearing
Why Choose It
- Strong chip evacuation for deeper cuts
- Clean bottom surfaces in pockets and slots
- Helps reduce heat vs. down-cut tools
- Rigid shank improves stability and accuracy
Starting Parameters
Small-diameter tools work best with higher RPM and controlled feed rates.
- Spindle: 18,000–24,000 RPM
- Feed: 100–180 IPM
- Plunge: 30–60 IPM
- Cut Strategy: Use shallow stepdowns and avoid overloading the tool
Compatible Materials
- Hardwood
- Softwood
- MDF
- Plastics
- Aluminum with light passes and good chip clearing
Specifications
- Tool Type: Up-Cut End Mill
- Flutes: 2
- Cutting Diameter: 1/8″
- Cutting Length: 0.87″
- Shank Diameter: 1/4″
- Overall Length: 2.36″
- Material: Tungsten Carbide
- Coating: Nano Blue
Notes
- May cause top-surface tear-out on veneered materials
- Often paired with a down-cut or compression bit for finishing
- Ideal for pockets, slots, and efficient chip clearing
