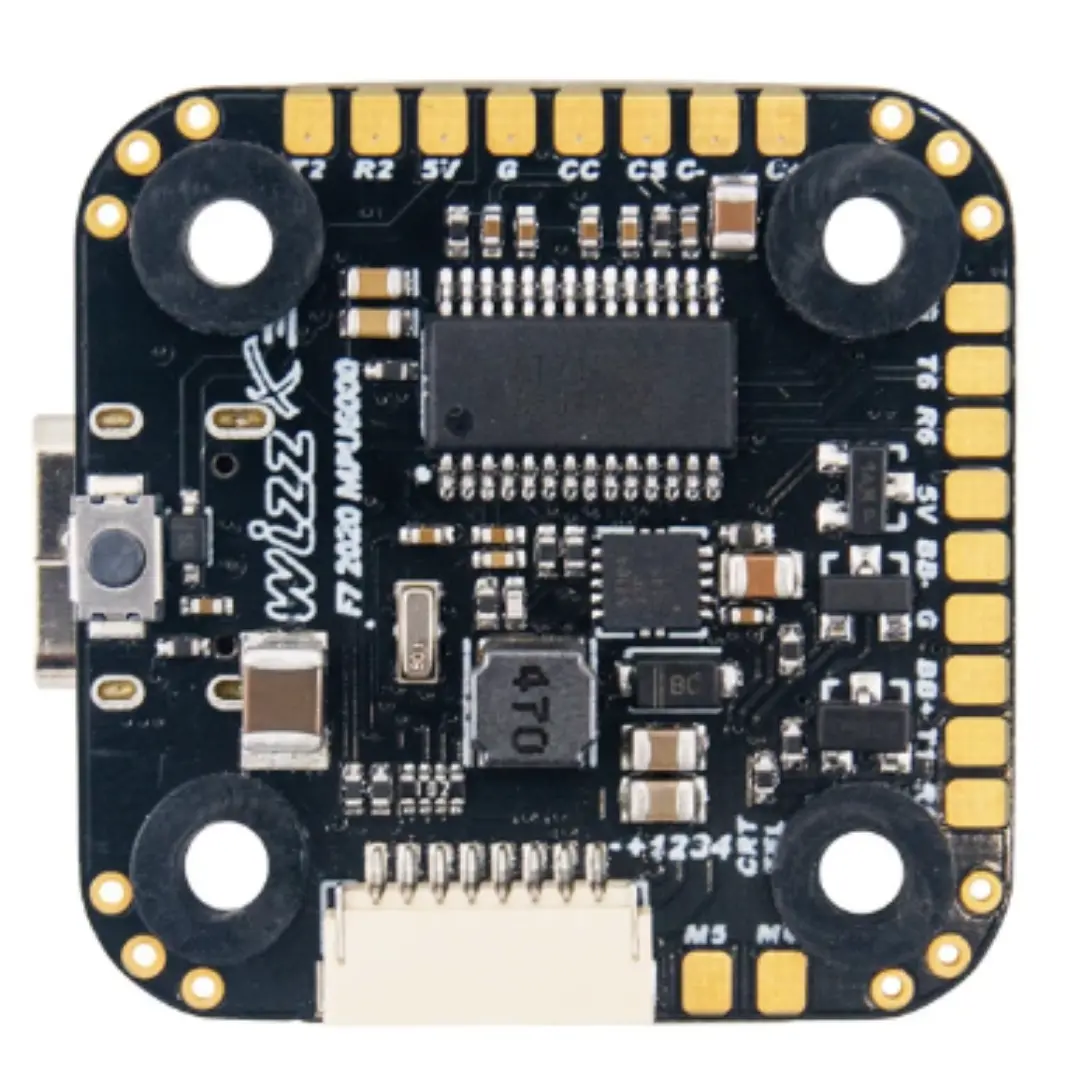

Wizz F7 HD 20×20 Flight Controller – DJI-Compatible

Description

SPECIFICATIONS

• Size: 20*20 M3 holes with vibration damping
• MCU: STM32F722RET6 216MHz
• Gyro: MPU6000 6-Axis
• Input: Up to 12S (50V) direct battery power Yes! 12S!
• USB type C
• DJI direct plug (6 pin)
• VTX pit mode switch – configured in Betaflight modes
• 5V or VBAT selectable for VTX and CAM power
• One wire Analogue Camera Control
• 4 Led pads (one at each corner) for easy LED installation – up to 40 LEDs on white and 100 LEDs in colour – perfect for FAI international races – shares 5V with 5V/2A BEC
• 6 UARTS, 4 full UARTS with RX AND TX pins
• 8 pin 4 in 1 ESC plug
• M5, M6 pads for additional motor outputs
• Buzzer pads for external buzzer
• Built in Betaflight OSD
• Boot button
• Logical pin layout for cleanest build

*Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.

 vtx pit switch cant control the dji plug
