Description

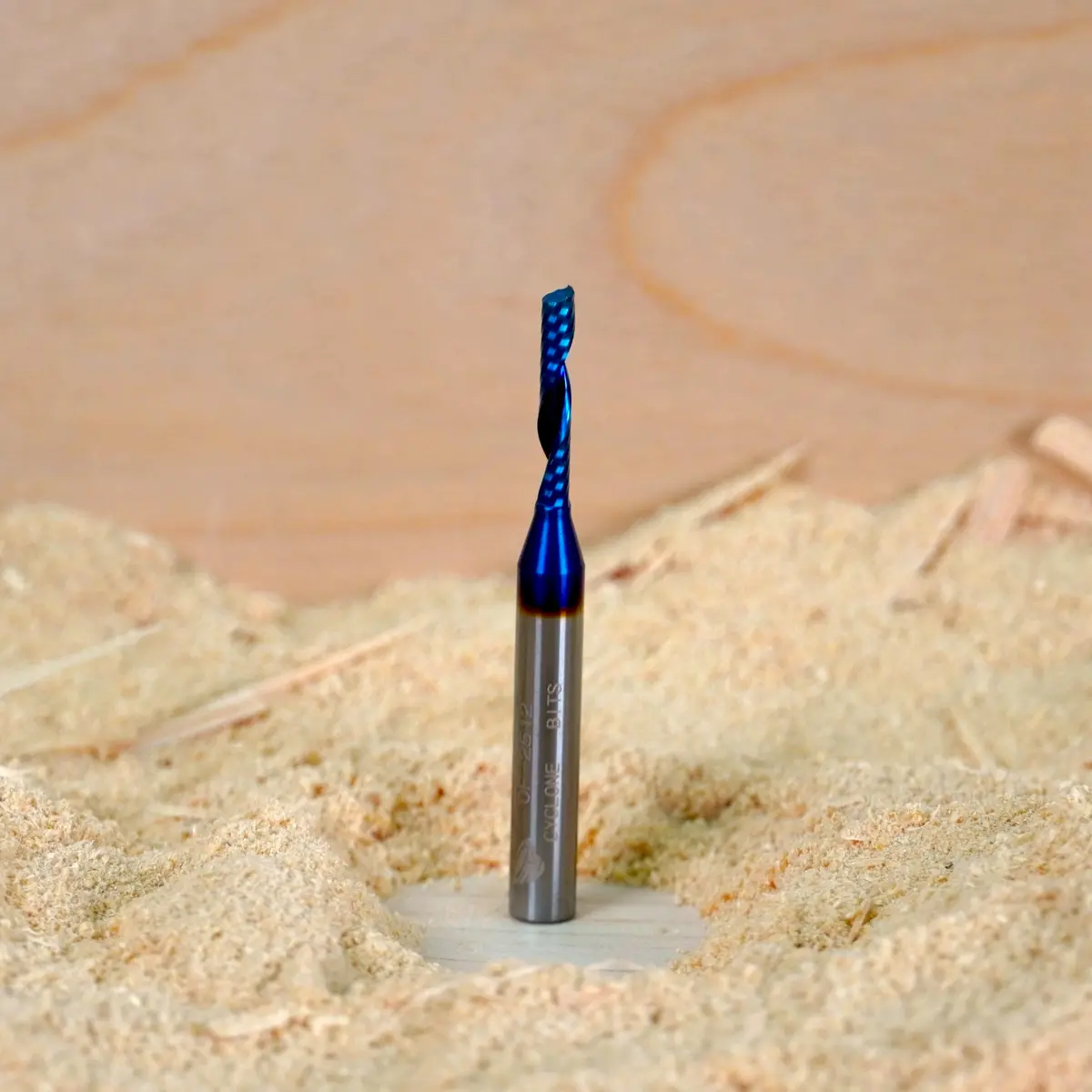

1/8″ O-Flute End Mill
Tungsten Carbide • Nano Blue Coated
Overview
Built for clean, controlled cutting in plastics and other soft materials where chip evacuation and heat management matter most. The single-flute O-flute geometry clears chips efficiently to help reduce melting and improve edge quality, especially on smaller features and tighter geometry.
Best For
- Acrylic
- HDPE, UHMW, and Delrin
- PVC
- Thin plastic sheet goods
Why Choose It
- Single flute for excellent chip evacuation
- Helps reduce heat buildup in plastics
- Ideal for small features and fine profiles
- Produces clean edges with minimal melting
Starting Parameters
Higher RPM with controlled feed works best. Adjust for material, machine rigidity, and chip formation.
- Spindle: 18,000–24,000 RPM
- Feed: 80–180 IPM
- Plunge: 20–40 IPM
- Cut Strategy: Keep feed high enough to make chips, not dust
Specifications
- Tool Type: O-Flute End Mill
- Flutes: 1
- Cutting Diameter: 1/8″
- Cutting Length: 0.79″
- Shank Diameter: 1/4″
- Overall Length: 2.36″
- Material: Tungsten Carbide
- Coating: Nano Blue
Notes
- Not recommended for hardwood or plywood
- Avoid slow feeds in plastic to prevent melting
- Air assist or vacuum extraction improves results
