Description

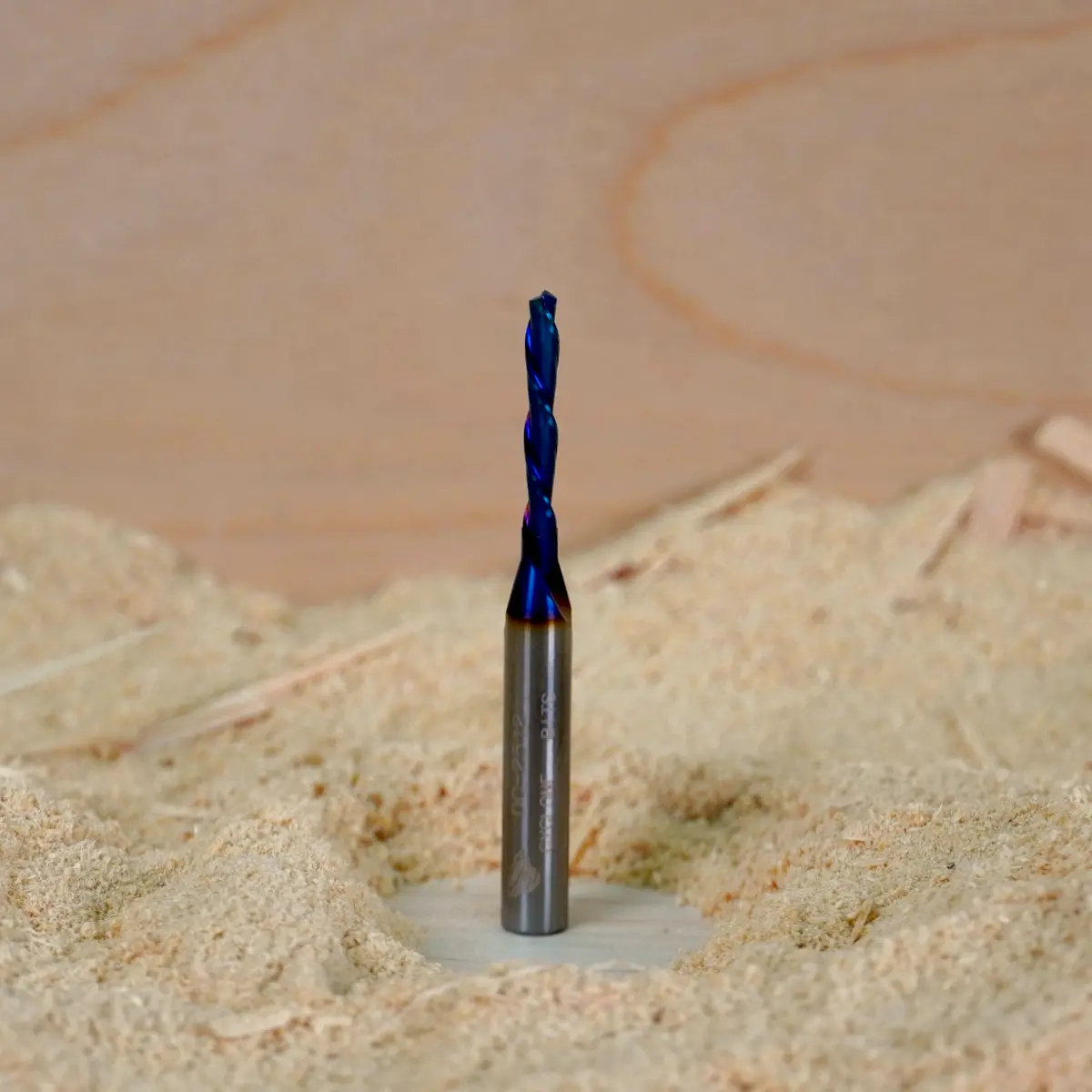

1/8″ Down-Cut End Mill
Tungsten Carbide • Nano Blue Coated
Overview
Built for clean top-edge finishes and fine detail work. The down-cut geometry pushes chips downward to help prevent top-surface tear-out, making it a great choice for visible parts, inlays, and precision profiling. Nano Blue coating improves heat resistance and tool life on spindle-driven CNC machines.
Best For
- Fine detail work
- Small pockets and profiles
- Inlays
- Clean top-edge finishes
Why Choose It
- Excellent top-surface finish with minimal tear-out
- Ideal for detailed cutting and visible parts
- Nano Blue coating improves durability
- Rigid 1/4″ shank adds stability
Starting Parameters
Small-diameter tools need higher RPM and lighter cuts for best results.
- Spindle: 18,000–24,000 RPM
- Feed: 80–150 IPM
- Plunge: 25–50 IPM
- Cut Strategy: Use conservative depths and clear chips often
Compatible Materials
- Plywood and veneered sheet goods
- Hardwood
- Softwood
- MDF
- Plastics
Specifications
- Tool Type: Down-Cut End Mill
- Flutes: 2
- Cutting Diameter: 1/8″
- Cutting Length: 0.87″
- Shank Diameter: 1/4″
- Overall Length: 2.36″
- Material: Tungsten Carbide
- Coating: Nano Blue
Notes
- Chips can pack in deep slots, so use lighter passes
- Not ideal for aggressive deep pocketing without clearing moves
- Excellent for finishing passes and detailed work
