Description

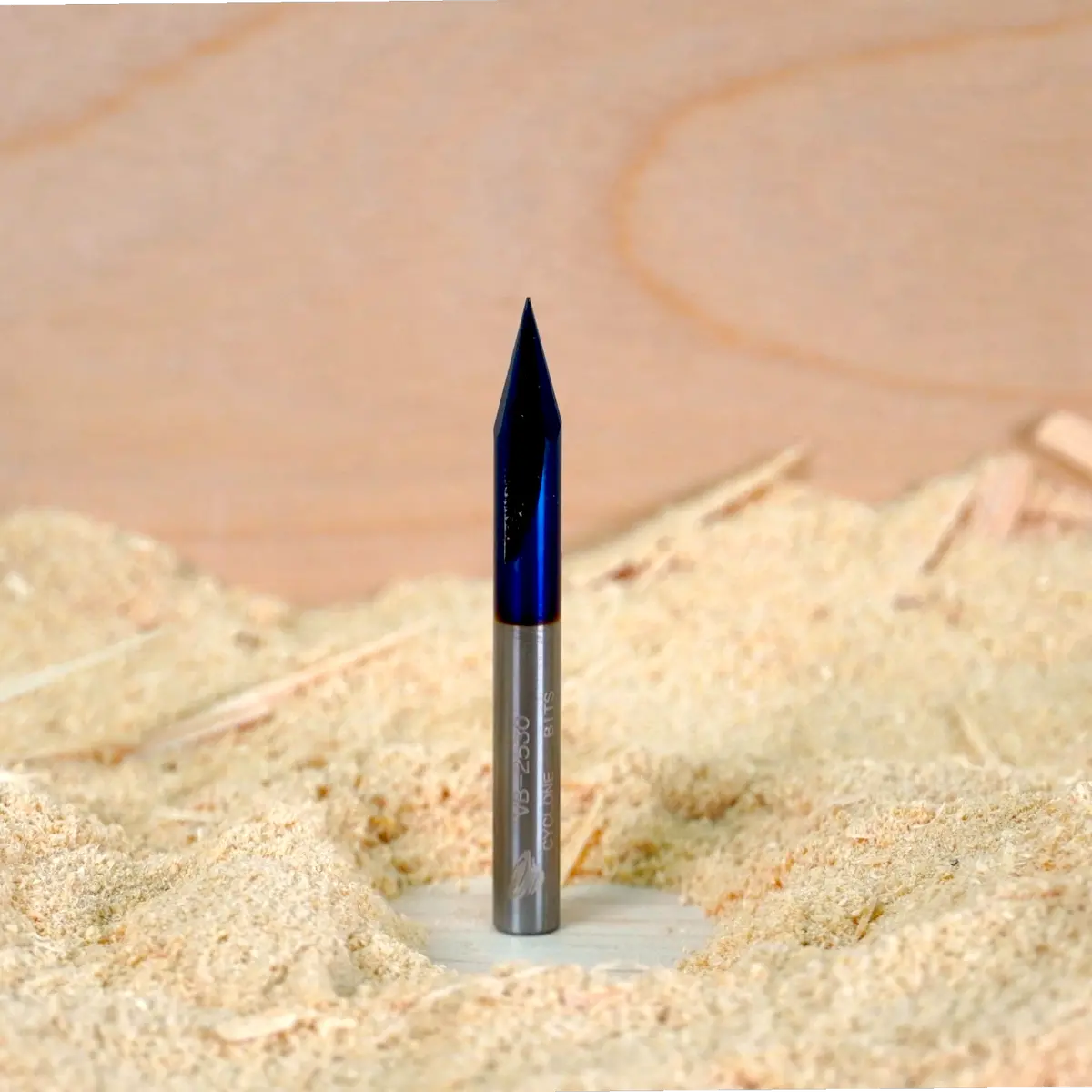

30° V-Bit
Tungsten Carbide • Nano Blue Coated
Overview
Built for fine-detail engraving, sharp line work, and precision V-carving. The 30° angle creates crisp, narrow cuts for text, logos, inlays, and decorative details, while the rigid carbide construction supports clean cutting on spindle-driven CNC machines.
Best For
- Fine-detail engraving
- Sharp V-carved text
- Logos and inlays
- Decorative line work
Why Choose It
- Sharp angle for crisp, narrow cuts
- Excellent control for shallow engraving
- Clean edges with minimal fuzzing
- Ideal for precision detail work
Starting Parameters
Light passes produce the best results. Adjust for material, machine rigidity, and detail level.
- Spindle: 16,000–22,000 RPM
- Feed: 60–140 IPM
- Plunge: 20–40 IPM
- Depth Strategy: Reduce feed and depth for very fine text or delicate materials
Compatible Materials
- Hardwood
- Softwood
- MDF
- Plywood
- Plastics for engraving and marking
Specifications
- Tool Type: V-Bit
- Included Angle: 30°
- Flutes: 3
- Shank Diameter: 1/4″
- Overall Length: 2.36″
- Material: Tungsten Carbide
- Coating: Nano Blue
Notes
- Cutting width changes with depth of cut
- Shallow passes produce the sharpest results
- Not intended for deep material removal
