Description

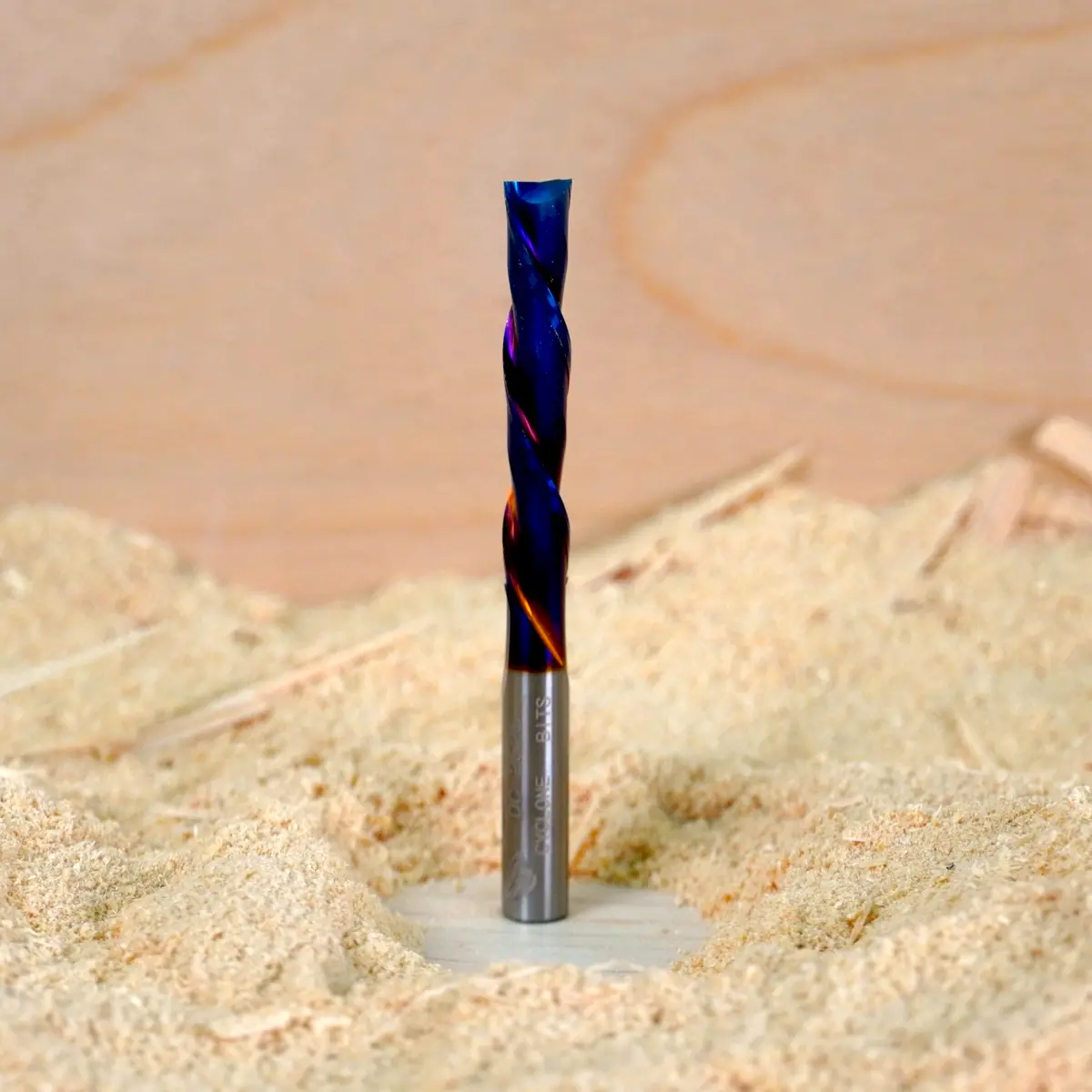

1/4″ Down-Cut End Mill
Tungsten Carbide • Nano Blue Coated
Overview
Built for clean top-edge finishes where surface quality matters more than chip evacuation. The down-cut geometry pushes chips into the cut to help minimize tear-out, making it a strong choice for visible edges, final passes, and veneered materials. Nano Blue coating improves heat resistance and tool life.
Best For
- Clean top-edge finishes
- Visible edges and final passes
- Plywood and veneered materials
- Laminated sheet goods
Why Choose It
- Leaves a very clean top surface
- Helps reduce tear-out
- Great control on plywood and veneers
- Ideal when finish matters most
Starting Parameters
Down-cut tools trap chips, so lighter passes work best.
- Spindle: 16,000–20,000 RPM
- Feed: 120–200 IPM
- Plunge: 40–60 IPM
- Cut Strategy: Use shallow passes and steady feed rates to avoid chip packing
Compatible Materials
- Plywood and veneered plywood
- MDF
- Hardwood
- Softwood
- Laminated materials
Specifications
- Tool Type: Down-Cut End Mill
- Flutes: 2
- Cutting Diameter: 1/4″
- Cutting Length: 1.5″
- Shank Diameter: 1/4″
- Overall Length: 2.75″
- Material: Tungsten Carbide
- Coating: Nano Blue
Notes
- Not ideal for deep pocketing due to chip evacuation limits
- Use dust collection to reduce chip buildup
- For through-cuts, pair with an up-cut or compression bit when needed
