Non-Contact Inductive Proximity Sensor for Metal Detection

Description

These are extremely reliable and high quality proximity switches with Molex connectors. When this proximity switch is close to some target object, it will send out control signal. Widely used for machine tool industry, frequency counters and other automatic control system, or you can use it for DIY CNC Machines or 3D Printers.

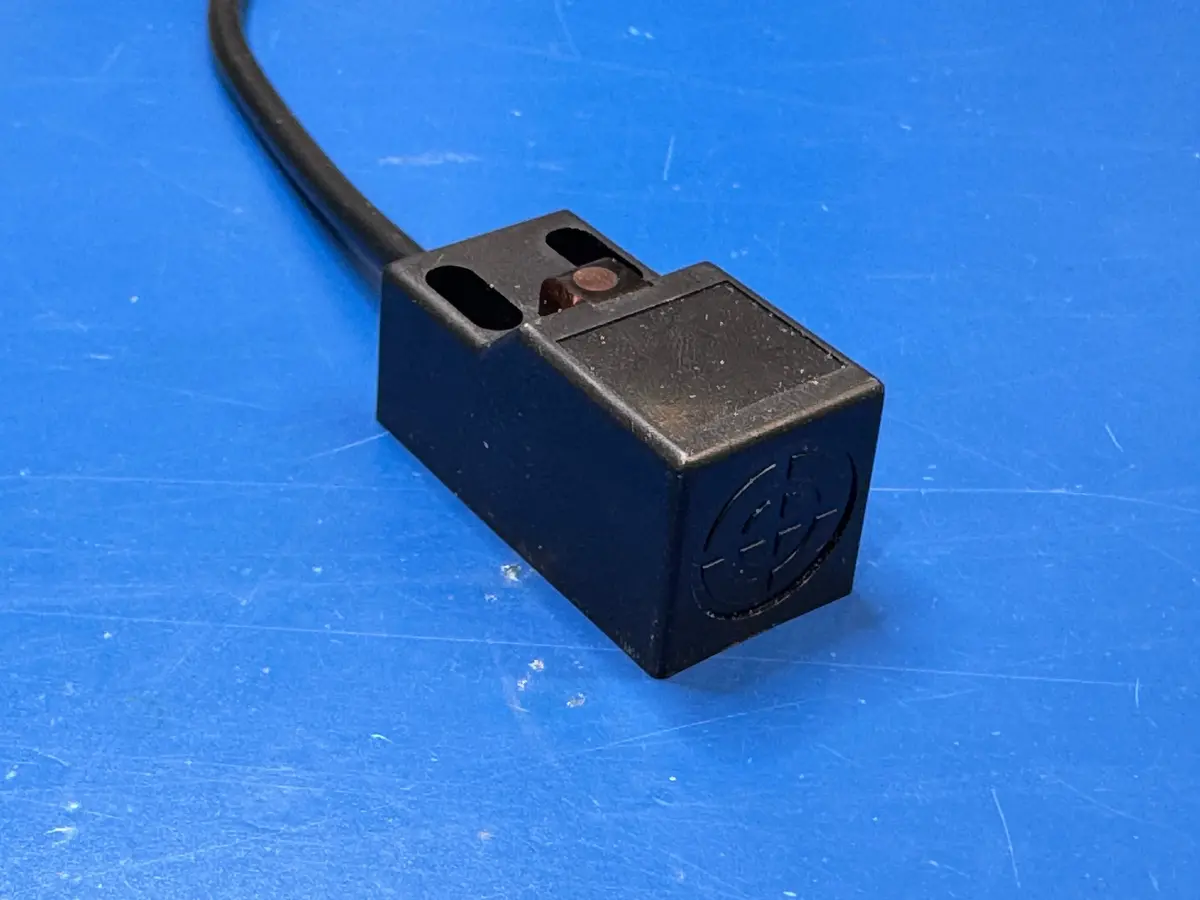

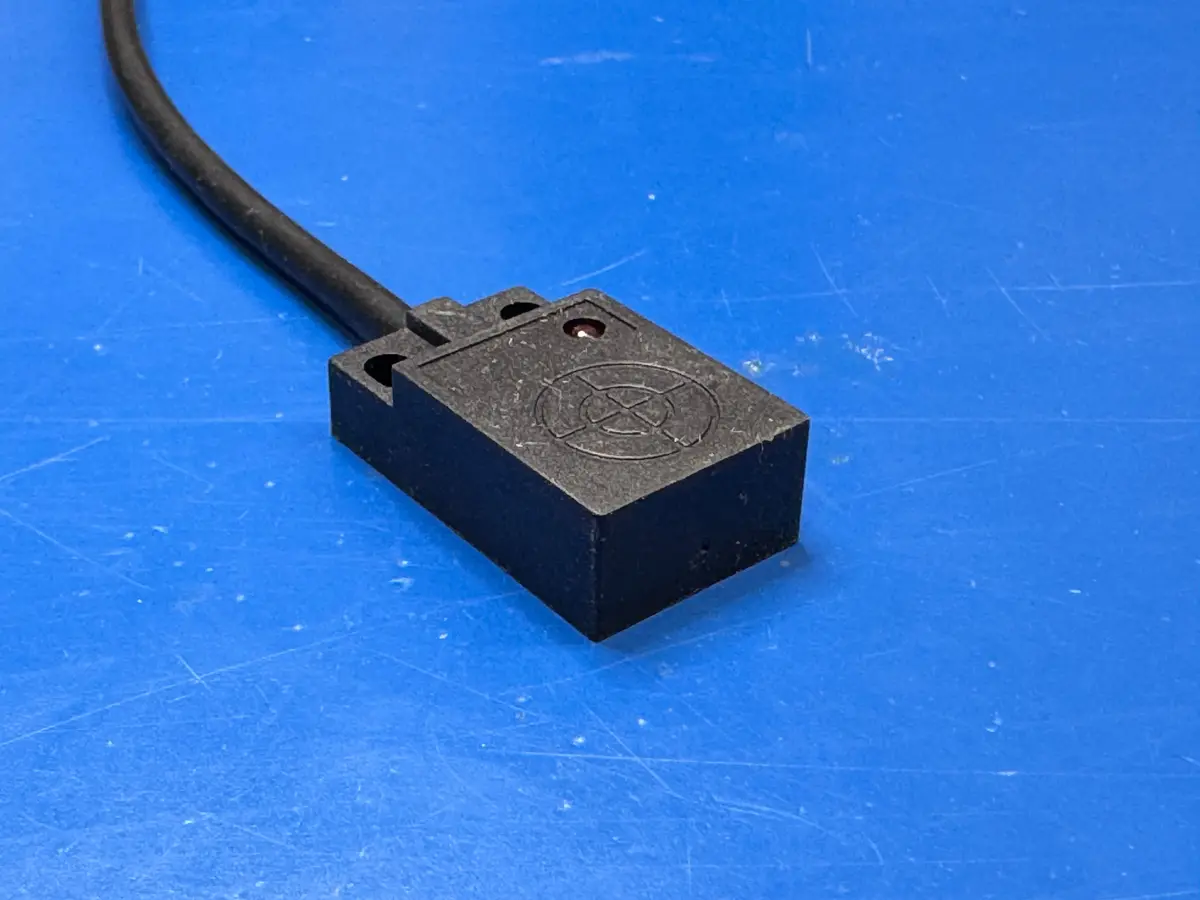

• Model: SN04-N (Face) / TL-W5MC1 (Top)
• Three-wire NPN
• NO, Normally Open
• Detecting Distance: 4mm
• Supply Voltage:  6-36v
• Current output: 300mA
• Color: Black

On the end of the 160mm cable is a Molex 43645-0300 connector.  You’ll need a cable with a Molex 43640-0301 connector on the end.
