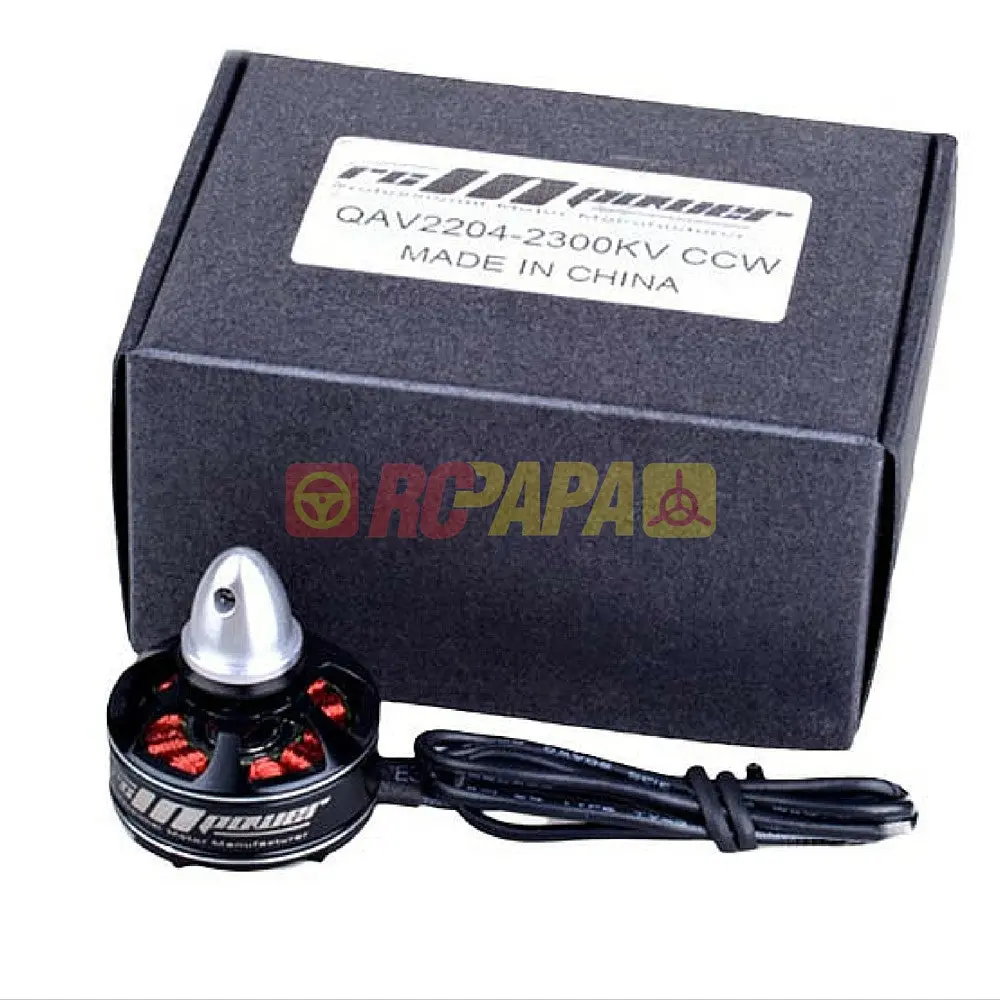

Rcinpower 2204 2300KV Quadcopter Brushless Motor Kit (4-Pack)

Description

Package Includes :

RCinPower 2204 2300KV Brushless Motor CW (x2)

RCinPower 2204 2300KV Brushless Motor CCW (x2)

Specification

KV: 2300

Configuration: 12N14P

Stator Diameter: 22mm

Stator Length: 4mm

Shaft Diameter: 3mm

Motor Dimension: Φ27.5*28.2mm

Weight: 27.4g

Idle current(10)@10V(A): 0.35

No.of cells(Lipo): 3-4S

Max.continuous power(W)180S: 270

Internal resistance: 190mΩ

Max Current(180S) 16A

Max.Effciency Current: (3-6A)>81%

Thread: Silver cap CW thread / Black cap CCW thread

Usage For: QAV250 Mini Quadcopter
