Description
Package Includes :

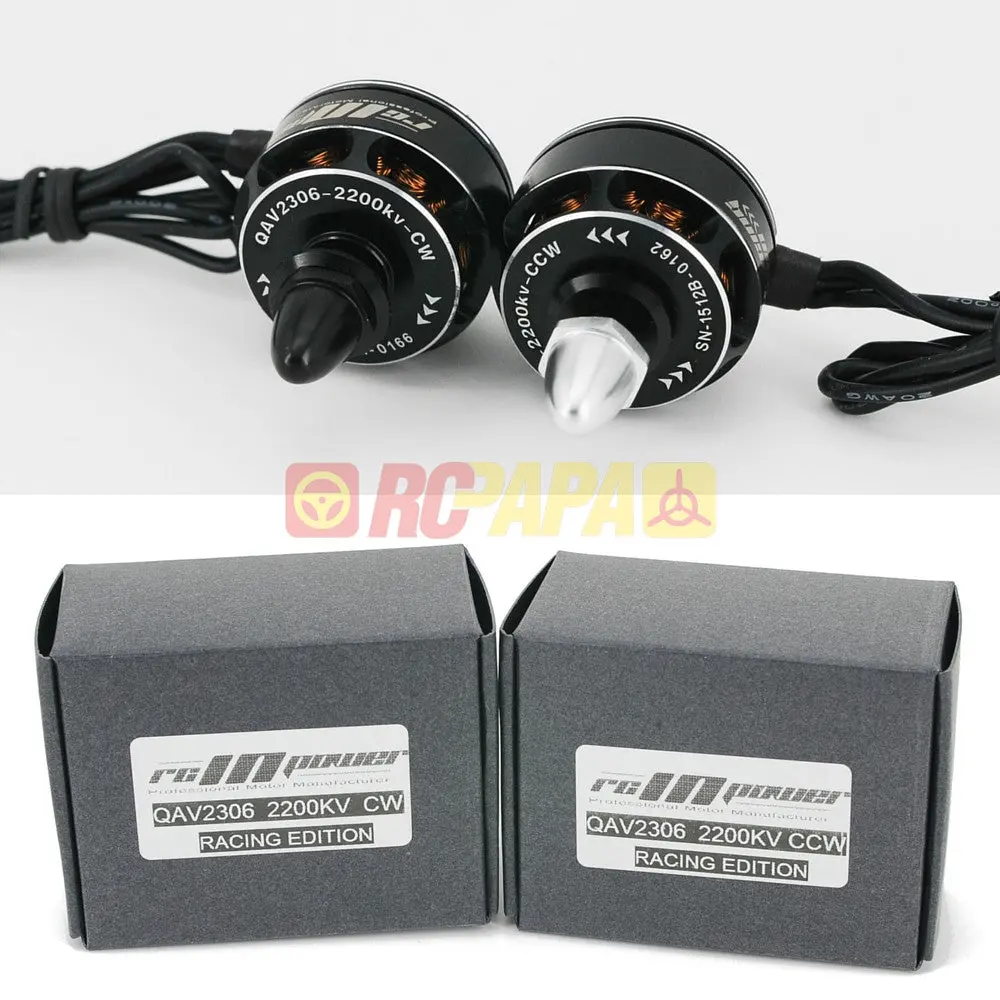

RCinPower 2306 2200KV Brushless Motor CW (x2)
RCinPower 2306 2200KV Brushless Motor CCW (x2)
Specification
KV: 2200
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 4mm
Shaft Diameter: 4mm (Hollow)
Motor Dimension: Φ28.5*35.3mm
Weight: 32g
Idle current(10)@10V(A): 0.7
No.of cells(Lipo): 3-4S
Max.continuous power(W)180S: 490
Internal resistance: 120mΩ
Max Current(180S) 33A
Max.Effciency Current: (4-7A)>80%
Thread: Silver cap CW thread / Black cap CCW thread
Usage For: QAV250 Mini Quadcopter
