Description
Package Included :

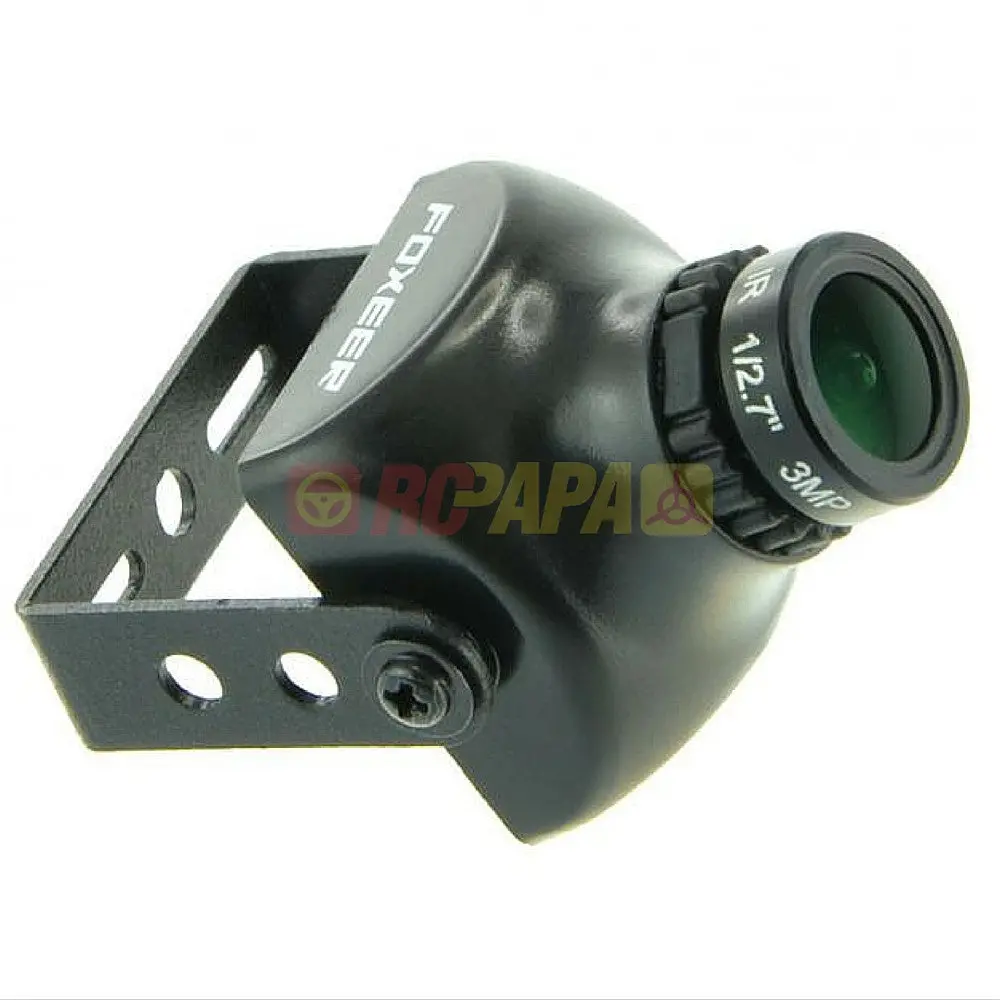

Foxer XAT1200M 16:9 1200TVL Camera (x1)
** PAL 2.8mm Lens Version **
Summary
Foxeer released 1.3 Mega pixel 16:9 FPV camera, which is suitable for 16:9 Goggles and monitors, it features wonderful OSD menu, WDR, 10ms latency as well as 5~22V wide voltage, it has very vivid color, excellent FPV camera for race.
Features :
1/2.9 inch sensor
1.3 Mega Pixel
1200TVL
CVBS 16:9
WDR
Latest high speed processor
Support 3D-DNR
SENSE-UP
Low illumination 0.01LUX
Multiple protection design, over voltage / static electricity / lightning protection；
Adopt Japanese power IC design, can be from 4.5V to 24V。
Powerful OSD menu
Specification :
Model Foxeer : XAT1200M
Image Sensor : 1/2.9” CMOS
Output Resolution : 1200TVL
Camera system : PAL
Total Pixels : 1280(H)×960(V)
Min. illumination :
Color 0.05Lux(F1.2,50IRE,AGC ON)
BW: 0.001Lux(F1.2,50IRE,AGC ON)
Shutter Speed (CCD IRIS) : PAL 1/50 ～ 1/100,000s
2D-DNR : 0-100
3D-DNR : 0-100
SENSE-UP : Support
Image Adjustment : Support
BLC/HLC : Support
WDR : In built
S/N : > 50dB
White Balance : Auto
Day / Night Shift : Auto/ External control/ Color/ B&W
Private shading : Support
Language : Chinese/English
Video Out : 1.0Vp-p, 75Ω
Input Power : 4.5V-24V
Working Temperature : -20℃～60℃
Working Humidity : Relative humidity < 90%
Dimension : 26mm*26mm
