Description

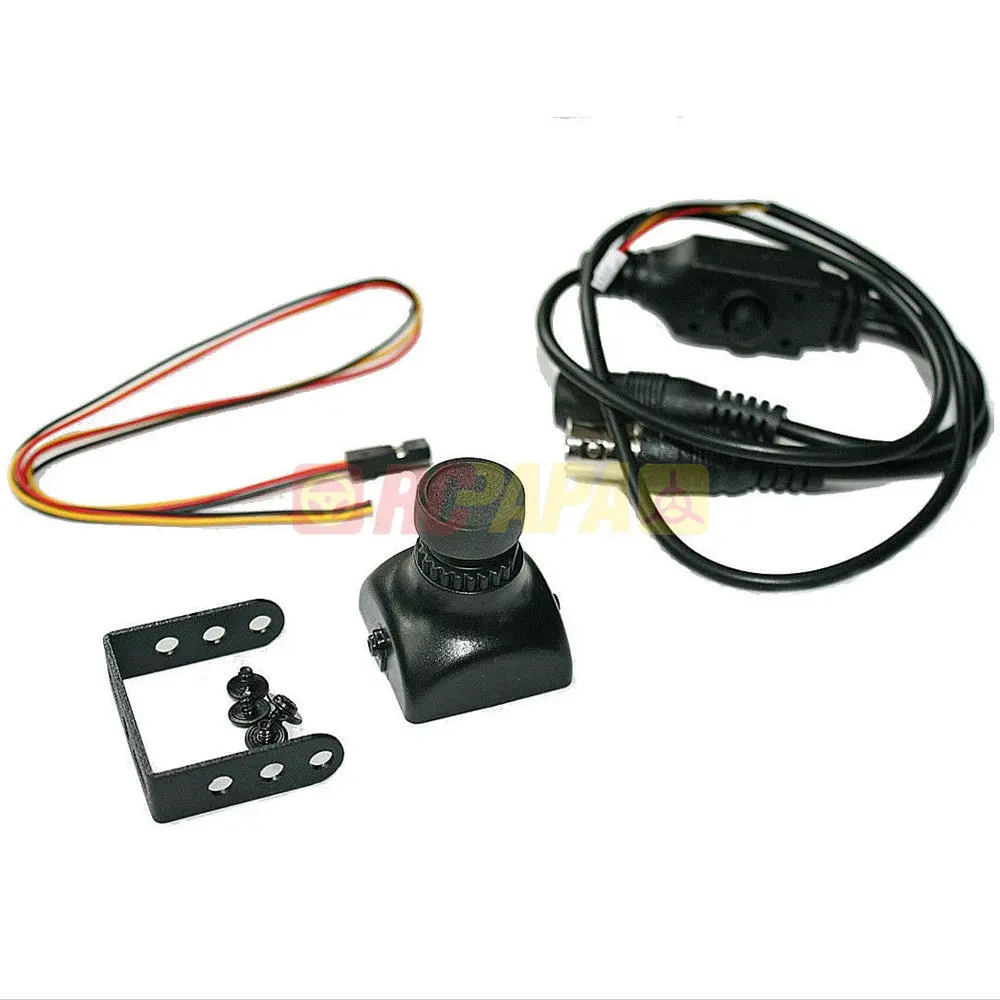

Cased Sony 600TVL CCD Mini FPV Camera, with 5-17v input so can easily powered from a Fatshark or ImmersionRC transmitter without the need for 5v-12v step up. Great picture, size very low RF interference and weighs in at only 12g without the bracket. Comes with 2.8mm Lens.
Features :
1/3″ SONY SUPER HAD II CCD
600TVL, high picture quality
Aerodynamic plastic case (12g with case)
Low RF interference
IR Block or IR Sensitive version
FPV friendly cable with JR connector
Nextchip 2040 DSP
Powerful OSD menu
D-WDR (Wide Dynamic Range)
2D-DNR (Digital Noise Reduction)
Low Power Consumption(70mA)
Mirror function
Low illumination: 0.01Lux
Specifications :
CCD: 1/3” Sony SUPER HAD II CCD
Pixel PAL: 976(H) x 494(V)
TV System: PAL
Resolution : 650TVL(b/w), 600tvl(color)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS) PAL: 1/50~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out : 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror : Horizontal Mirror optional
Negative : Positive / Negative optional
Color to B&W: Auto
DNR : 2DNR
WDR: D-WDR
Day / Night Shift : Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title : Support
Power Requirement : DC5V~17V
Working Temperature : -10 C ~ +50 C
Working Humidity : 20~80%
Storage Temperature : -40 C ~ +60 C
Storage Humidity : 20~95%
Dimensions(mm) : 25X25(W*L)
Power Consumption: 70mA
