Foxeer XAT650 600TVL Super HAD CCD Camera with 2.8mm Lens, 5–22V DC Input

Description

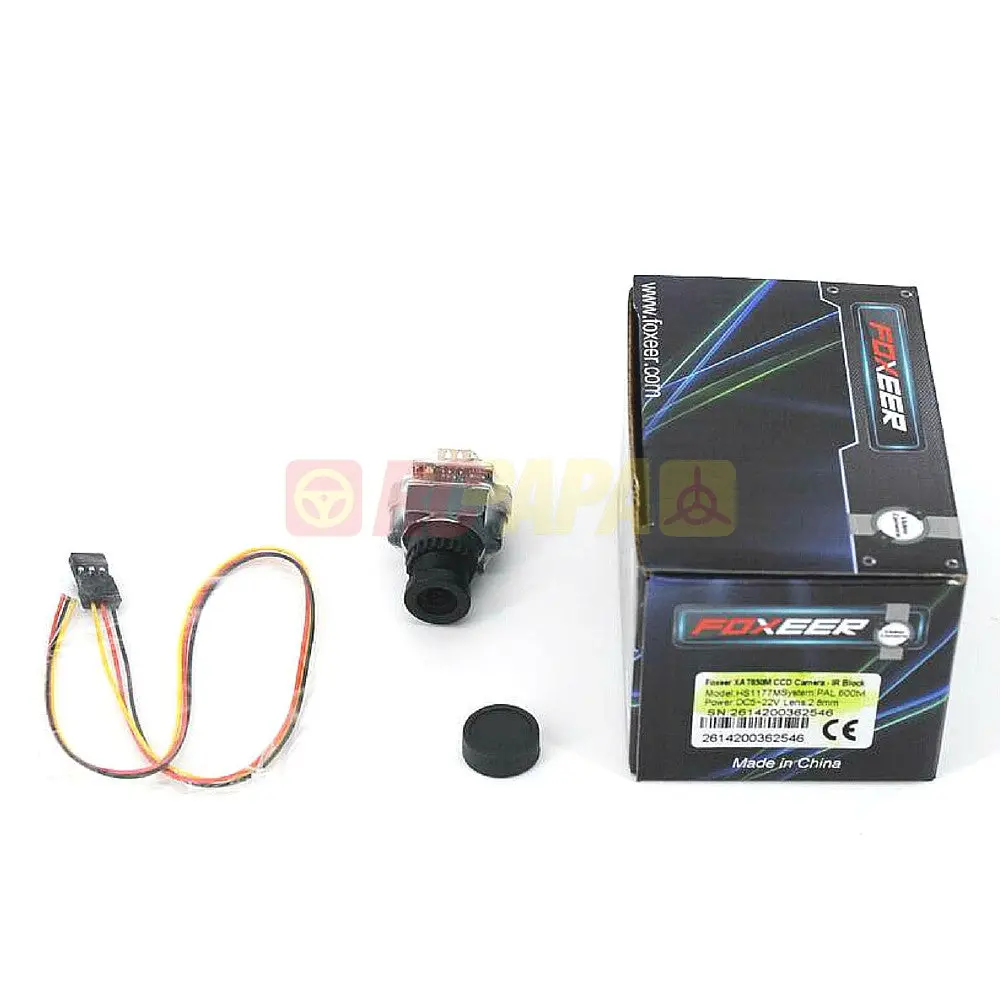

Package includes :
Camera x1
Manual x1
OSD cable x1
4pin servo cable x1
3pin servo cable x1
** 2.8mm Lens, IR Block, PAL version **

Summary
This is super mini CCD camera with 17*17mm size, which make it nearly suit any drone. It adopts 1/3 inch Sony Super HAD II CCD, Nextchip 2040 DSP. It features 600TVL high resolution, DWDR, 0.01 lux low light as well as 5 keys powerful OSD menu. 5~22V wide range input voltage allow you change battery without worries.

Features :
Camera weight only 12g
600TVL, high picture quality
1/3″ SONY SUPER HAD II CCD
Nextchip 2040 DSP
Powerful OSD menu
D-WDR (Wide Dynamic Range)
2D-DNR (Digital Noise Reduction)
Low Power Consumption(70mA)
Mirror function
Privacy areas: 8 areas
Low illumination: 0.01Lux
Suitable for FPV (First Person View)

Specification :
Model : HS1177M
CCD : 1/3” Sony SUPER HAD II CCD
Pixel : PAL 976(H) x 494(V)
TV System : PAL
Resolution : 650TVL(b/w), 600tvl(color)
Synchronization : Internal Synchronize
Shutter Speed (CCD IRIS) : PAL 1/50~1/100000 sec
Noise : > 60 (AGC OFF)
Video Out : 75ohm, synchronize
Min. Illumination : 0.01Lux
Auto Gain : Off/Low/Mid/High
Back Light Compensation (BLC) : Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY) : 1~8 private shading area
Motion Detection (MD) : On/ Off (Multi level sensitivity settable)
Auto White Balance : Manual / Auto / Auto track
Mirror : Horizontal Mirror optional
Negative : Positive / Negative optional
Color to B&W :Auto
DNR : 2DNR
WDR : D-WDR
Day/Night Shift : Auto/ Color/ B&W
Menu (OSD) : English menu
White Dot Repair : Support
Image Adjustment : Support
Camera Title : Support
Power Requirement : DC5V~22V
Working Temperature : -10 C ~ 50 C
Working Humidity : 20~80%
Storage Temperature : -40 C ~ 60 C
Storage Humidity : 20~95%
Dimensions(mm) : 17X17(W*L)
Power Consumption : 70mA
