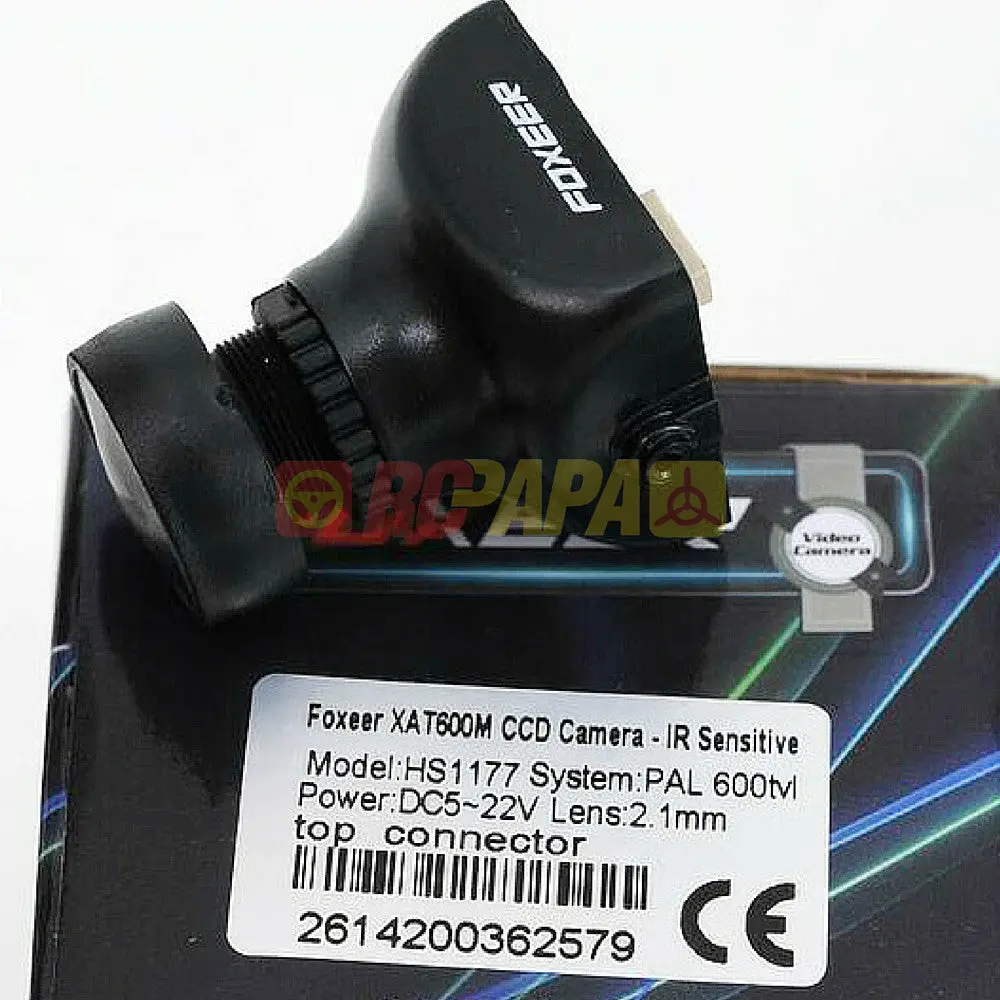

Foxeer XAT600M 600TVL Super HAD CCD Camera – HS1177 Sensor, Wide Input Voltage (5–22V DC)

Description

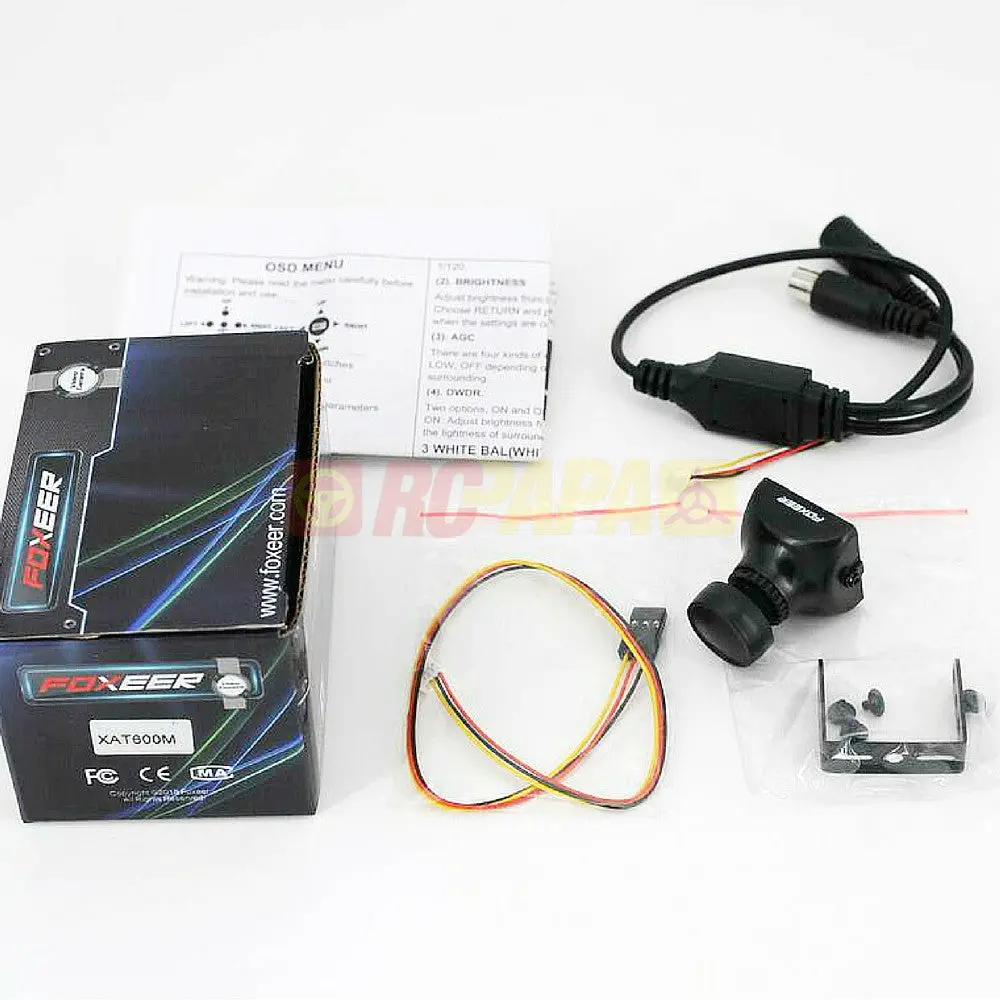

Package includes :
Camera x1
Manual x1
OSD cable x1
4pin servo cable x1

** 2.1mm or 2.5mm Lens, see options **

** IR Sensitive or IR Block, see options **

** PAL Version, Color Black **

Summary
Foxeer XAT600M adopts 1/3 Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01Lux(black/white), as well as powerful OSD menu, total weight including plastic case is 12g (without bracket), camera without bracket just 12g.

Features :
With plastic case and bracket just 17g
Camera with plastic case just 12g
600TVL, high picture quality
1/3″ SONY SUPER HAD II CCD
Nextchip 2040 DSP
Powerful OSD menu
D-WDR (Wide Dynamic Range)
2D-DNR (Digital Noise Reduction)
Low Power Consumption(70mA)
Mirror function
Privacy areas: 8 areas
Low illumination: 0.01Lux
Weight 12g without bracket
Suitable for FPV Race

Spec :
Model : HS1177
CCD : 1/3” Sony SUPER HAD II CCD
Pixel : PAL 976(H) x 494(V)
TV System : PAL
Resolution : 650TVL(b/w), 600tvl(color)
Synchronization : Internal synchronize
Shutter Speed (CCD IRIS) : PAL: 1/50~1/100000 sec
Noise : > 60 (AGC OFF)
Video Out : 75ohm, synchronize
Min. Illumination : 0.01Lux
Auto Gain : Off/Low/Mid/High
Back Light Compensation (BLC) : Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY) : 1~8 private shading area
Motion Detection (MD) : On/ Off (Multi level sensitivity settable)
Auto White Balance : Manual / Auto / Auto track
Mirror : Horizontal Mirror optional
Negative : Positive / Negative optional
Color to B&W : Auto
DNR : 2DNR
WDR : D-WDR
Day/Night Shift : Auto/ Color/ B&W
Menu (OSD) : English menu
White Dot Repair : Support
Image Adjustment : Support
Camera Title : Support
Power Requirement : DC5V~22V
Working Temperature : -10 C ~ 50 C
Working Humidity : 20~80%
Storage Temperature : -40 C ~ 60 C
Storage Humidity : 20~95%
Dimensions(mm) : 25X25(W*L)
Power Consumption : 70mA
